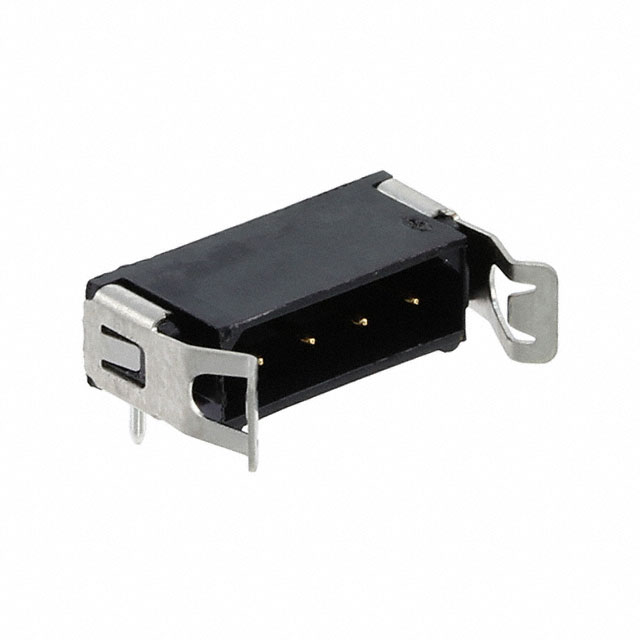

M80-8760422

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Termination :

Solder

ECCN Code :

EAR99

Number of Rows :

1

Feature :

Strain Relief Clips

MIL Conformance :

No

Connector Type :

Header

Fastening Type :

Latch Lock

Polarization Key :

POLARIZED HOUSING

Contact Gender :

Male

Max Current Rating :

3A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

PCB Contact Pattern :

RECTANGULAR

Plating Thickness :

30μin

Series :

Datamate L-Tek

Max Voltage Rating (AC) :

120V

Current Rating :

3A

IEC Conformance :

No

Filter Feature :

No

Number of Conductors :

ONE

Mount :

Through Hole

DIN Conformance :

No

Mixed Contacts :

No

Shrouding :

Shrouded - 4 Wall

Mounting Type :

Through Hole, Right Angle

Material Flammability Rating :

UL94 V-0

Number of Positions Loaded :

All

Published :

2008

Contact Length - Post :

0.118 3.00mm

Contact Finish - Mating :

Gold

Package / Case :

SIL

Insulation Height :

0.156 3.96mm

Pbfree Code :

No

Durability :

500 Cycles

Reference Standard :

UL

Housing Material :

Polyester

Number Of PCB Rows :

1

Operating Temperature :

-55°C~125°C

Factory Lead Time :

11 Weeks

Style :

Board to Board or Cable

Length :

12mm

Contact Shape :

Circular

Mating Contact Pitch :

0.079 inch

Contact Resistance :

25mOhm

Housing Color :

Black

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Option :

GENERAL PURPOSE

Contact Material :

Phosphor Bronze

Contact Type :

Male Pin

Contact Finish Thickness - Post :

118.1μin 3.00μm

Additional Feature :

LATCHED

Contact Finish - Post :

Tin-Lead

Pitch - Mating :

0.079 2.00mm

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Depth :

3.98mm

Reliability :

COMMERCIAL

Orientation :

RIGHT ANGLE

RoHS Status :

Non-RoHS Compliant

Current Rating (Amps) :

2.2A

JESD-609 Code :

e0

Reach Compliance Code :

not_compliant

Packaging :

Tube

Number of Positions :

4
