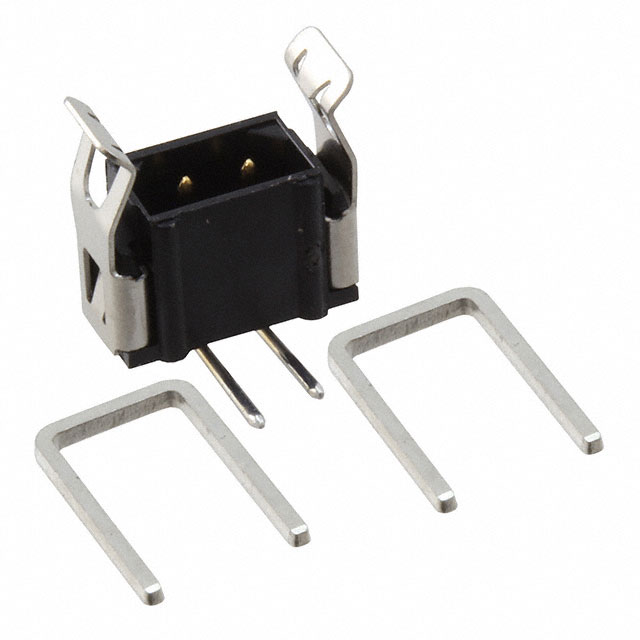

M80-8760222

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Connector Type :

Header

Mating Contact Pitch :

0.079 inch

Max Current Rating :

3A

Packaging :

Tube

Contact Finish - Post :

Tin-Lead

Number of Rows :

1

Termination :

Solder

Reliability :

COMMERCIAL

Depth :

3.98mm

Durability :

500 Cycles

Plating Thickness :

30μin

Factory Lead Time :

11 Weeks

Number of Conductors :

ONE

Contact Finish - Mating :

Gold

Fastening Type :

Latch Lock

Reference Standard :

UL

Number Of PCB Rows :

1

Housing Material :

Polyester

Published :

2006

RoHS Status :

Non-RoHS Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Current Rating (Amps) :

2.2A

Option :

GENERAL PURPOSE

Mixed Contacts :

No

REACH SVHC :

No SVHC

Mount :

Through Hole

Shrouding :

Shrouded - 4 Wall

PCB Contact Pattern :

RECTANGULAR

Pbfree Code :

No

Contact Type :

Male Pin

Contact Length - Post :

0.118 3.00mm

Polarization Key :

POLARIZED HOUSING

Number of Positions Loaded :

All

Contact Resistance :

25mOhm

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Operating Temperature :

-55°C~125°C

Contact Shape :

Circular

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Max Voltage Rating (AC) :

120V

Contact Finish Thickness - Post :

118.1μin 3.00μm

Additional Feature :

LATCHED

Current Rating :

3A

Insulation Height :

0.156 3.96mm

Housing Color :

Black

Feature :

Strain Relief Clips

Contact Material :

Phosphor Bronze

DIN Conformance :

No

Contact Gender :

Male

Mounting Type :

Through Hole, Right Angle

Material Flammability Rating :

UL94 V-0

Orientation :

RIGHT ANGLE

ECCN Code :

EAR99

Package / Case :

SIL

Pitch - Mating :

0.079 2.00mm

HTS Code :

8536.69.40.40

Contact Finish Thickness - Mating :

29.5μin 0.75μm

IEC Conformance :

No

MIL Conformance :

No

Filter Feature :

No

Length :

8mm

Number of Positions :

2

Style :

Board to Board or Cable

Series :

Datamate L-Tek

JESD-609 Code :

e0

UL Flammability Code :

94V-0
