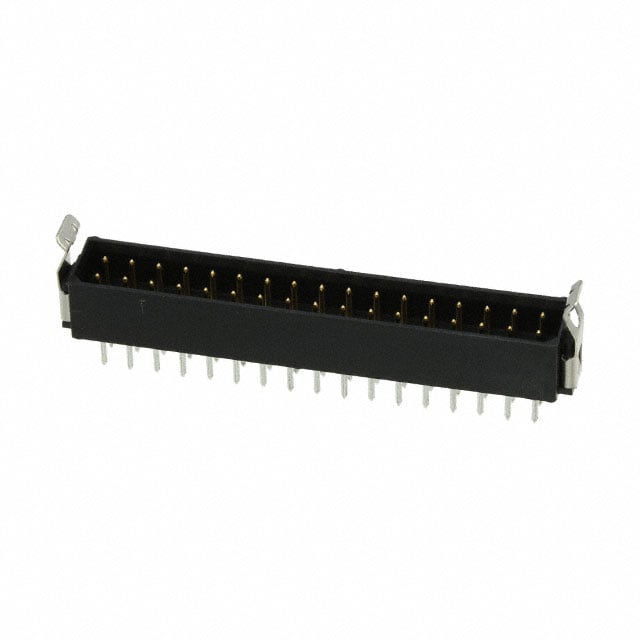

M80-8673422

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Published :

2011

Number Of PCB Rows :

2

Mounting Type :

Through Hole

Polarization Key :

POLARIZED HOUSING

Number of Positions :

34

Plating Thickness :

30μin

Contact Resistance :

25mOhm

Pbfree Code :

No

Filter Feature :

No

DIN Conformance :

No

Housing Material :

Polyester

Packaging :

Tube

Insulation Resistance :

100000000Ohm

Orientation :

Straight

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Termination :

Solder

Length :

38mm

Contact Finish - Post :

Tin-Lead

Contact Finish Thickness - Post :

118.1μin 3.00μm

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Contact Finish - Mating :

Gold

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Shape :

Circular

UL Flammability Code :

94V-0

Operating Temperature :

-55°C~125°C

Current Rating (Amps) :

2.2A

Contact Type :

Male Pin

Voltage - Rated :

800V

Mating Contact Pitch :

0.079 inch

Pitch - Mating :

0.079 2.00mm

Max Voltage Rating (AC) :

120V

Current Rating :

3A

Number of Rows :

2

Depth :

5.98mm

Number of Positions Loaded :

All

Option :

GENERAL PURPOSE

Additional Feature :

LATCHED

Contact Gender :

Male

Reliability :

COMMERCIAL

Insulation Material :

Polyester, Glass Filled

HTS Code :

8536.69.40.40

Contact Material :

Phosphor Bronze

Style :

Board to Board or Cable

Max Current Rating :

3A

Reference Standard :

UL

Mixed Contacts :

No

Factory Lead Time :

11 Weeks

RoHS Status :

Non-RoHS Compliant

Connector Type :

Header

Number of Conductors :

ONE

Mount :

Through Hole

Fastening Type :

Latch Lock

MIL Conformance :

No

Stack Height (Mating) :

7.23mm 7.85mm 10.2mm 13.51mm

ECCN Code :

EAR99

JESD-609 Code :

e0

Dielectric Withstanding Voltage :

360VAC V

Housing Color :

Black

Shrouding :

Shrouded - 4 Wall

Series :

Datamate L-Tek

PCB Contact Pattern :

RECTANGULAR

IEC Conformance :

No

Row Spacing - Mating :

0.079 (2.00mm)

Material Flammability Rating :

UL94 V-0

Insulation Height :

0.219 5.56mm

Durability :

500 Cycles

Contact Length - Post :

0.118 3.00mm
