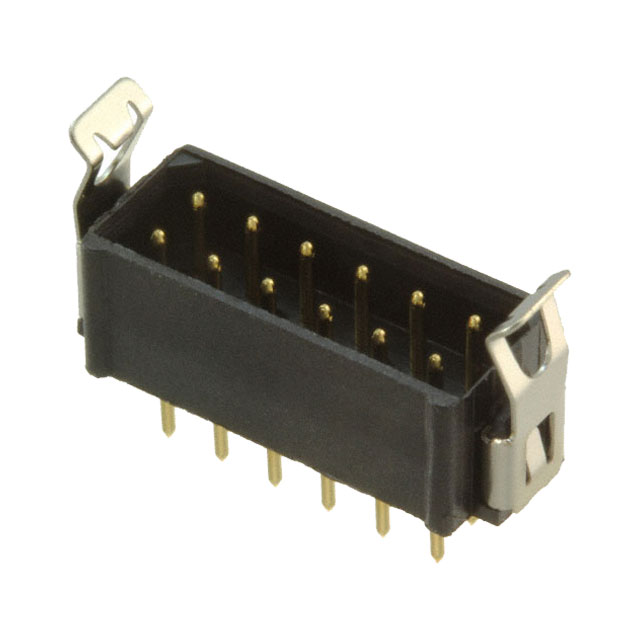

M80-8671205

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Housing Color :

Black

Mating Contact Pitch :

0.079 inch

Durability :

500 Cycles

Mount :

Through Hole

Option :

GENERAL PURPOSE

Pbfree Code :

No

Number of Rows :

2

RoHS Status :

Non-RoHS Compliant

Termination :

Solder

Max Voltage Rating (AC) :

120V

JESD-609 Code :

e4

Insulation Resistance :

100000000Ohm

Reference Standard :

UL

Additional Feature :

LATCHED

Published :

2013

Number of Positions Loaded :

All

Contact Finish - Mating :

Gold

Current Rating (Amps) :

2.2A

MIL Conformance :

No

Contact Shape :

Circular

Voltage - Rated :

800V

Mixed Contacts :

No

Contact Length - Post :

0.118 3.00mm

Length :

16mm

Orientation :

Straight

Reliability :

COMMERCIAL

Mounting Type :

Through Hole

Row Spacing - Mating :

0.079 (2.00mm)

Depth :

5.98mm

Connector Type :

Header

HTS Code :

8536.69.40.40

Contact Material :

Phosphor Bronze

Insulation Height :

0.219 5.56mm

Pitch - Mating :

0.079 2.00mm

Packaging :

Tube

Number Of PCB Rows :

2

Stack Height (Mating) :

7.23mm 7.85mm 10.2mm 13.51mm

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Fastening Type :

Latch Lock

Plating Thickness :

30μin

Style :

Board to Board or Cable

Operating Temperature :

-55°C~125°C

Contact Resistance :

25mOhm

ECCN Code :

EAR99

Number of Positions :

12

Material Flammability Rating :

UL94 V-0

Polarization Key :

POLARIZED HOUSING

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

PCB Contact Pattern :

RECTANGULAR

Shrouding :

Shrouded - 4 Wall

Contact Type :

Male Pin

Number of Conductors :

ONE

Filter Feature :

No

Factory Lead Time :

11 Weeks

Series :

Datamate L-Tek

IEC Conformance :

No

Max Current Rating :

3A

UL Flammability Code :

94V-0

Contact Gender :

Male

Dielectric Withstanding Voltage :

360VAC V

Housing Material :

Polyester

Radiation Hardening :

No

Insulation Material :

Polyester, Glass Filled

DIN Conformance :

No
