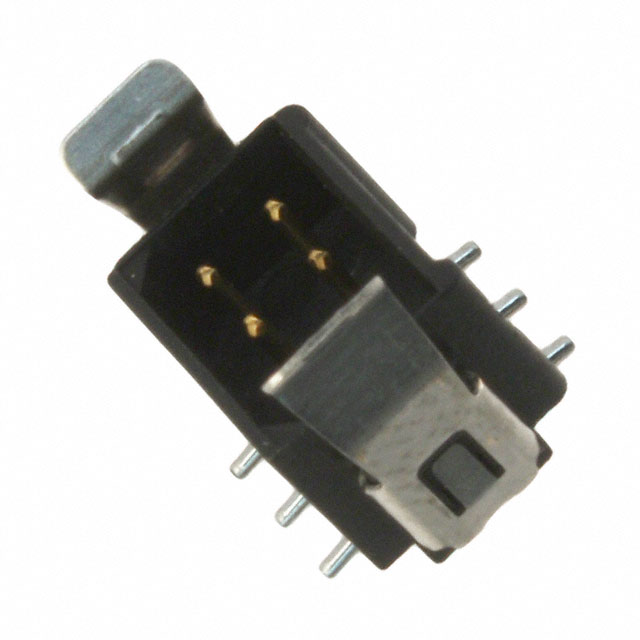

M80-8270642

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Plating Thickness :

30μin

Material :

Polyamide

Contact Shape :

Circular

Polarization Key :

POLARIZED HOUSING

Pbfree Code :

yes

Published :

2006

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

Number of Conductors :

ONE

Reference Standard :

UL

Mating Contact Pitch :

0.079 inch

PCB Contact Pattern :

RECTANGULAR

Depth :

5.9mm

Mounting Type :

Surface Mount

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Insulation Height :

0.205 5.20mm

Durability :

500 Cycles

Pitch - Mating :

0.079 2.00mm

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Termination :

Solder

Factory Lead Time :

4 Weeks

Contact Type :

Male Pin

Housing Color :

Black

MIL Conformance :

No

Number Of PCB Rows :

2

Connector Type :

Header

Stack Height (Mating) :

7.85mm 8.45mm 10.5mm 14.25mm

Lead Pitch :

2mm

Max Voltage Rating (AC) :

120V

Additional Feature :

LATCHED

Contact Gender :

Male

Contact Material :

Phosphor Bronze

Contact Finish - Post :

Tin

Material Flammability Rating :

UL94 V-0

Reliability :

COMMERCIAL

Number of Rows :

2

Mount :

Surface Mount

Flammability Rating :

UL94 V-0

Filter Feature :

No

Insulation Resistance :

100MOhm

Current Rating (Amps) :

2.2A

Max Current Rating :

3A

Contact Finish Thickness - Post :

118.1μin 3.00μm

Voltage - Rated :

800V

Number of Positions :

6

Contact Resistance :

25mOhm

Orientation :

Straight

Fastening Type :

Friction Lock

DIN Conformance :

No

Working Voltage :

120V

Mixed Contacts :

No

Total Number of Contacts :

6

Length :

9.6mm

Operating Temperature :

-55°C~125°C

Current Rating :

3A

Contact Finish - Mating :

Gold

Series :

Datamate L-Tek

Packaging :

Tube

Number of Positions Loaded :

All

Shrouding :

Shrouded - 4 Wall

Radiation Hardening :

No

IEC Conformance :

No

UL Flammability Code :

94V-0

Style :

Board to Board or Cable

Row Spacing - Mating :

0.079 (2.00mm)

REACH SVHC :

No SVHC

Option :

GENERAL PURPOSE

JESD-609 Code :

e3
