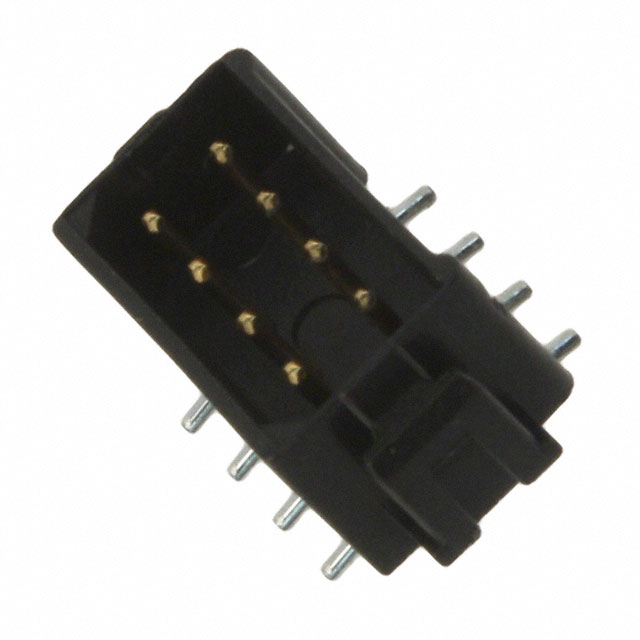

M80-8260842

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Contact Finish - Mating :

Gold

Max Voltage Rating (AC) :

120V

Length :

11.55mm

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Number Of PCB Rows :

2

Operating Temperature :

-55°C~125°C

Current Rating :

3A

Packaging :

Tube

DIN Conformance :

No

Contact Resistance :

20mOhm

Number of Rows :

2

Mount :

Surface Mount

Shrouding :

Shrouded - 4 Wall

Withdrawl Force-Min :

.1946 N

Orientation :

Straight

Max Current Rating :

3A

Depth :

5.96mm

Voltage - Rated DC :

120V

Filter Feature :

No

Reference Standard :

UL

Lead Pitch :

2mm

Published :

2002

Contact Finish Thickness - Post :

118.1μin 3.00μm

Pitch - Mating :

0.079 2.00mm

Insulation Height :

0.205 5.20mm

Row Spacing - Mating :

0.079 (2.00mm)

JESD-609 Code :

e3

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

RoHS Status :

ROHS3 Compliant

Additional Feature :

RoHS Compliant

Mounting Type :

Surface Mount

Mating Contact Pitch :

0.079 inch

Mixed Contacts :

No

Material Flammability Rating :

UL94 V-0

Number of Conductors :

ONE

Plating Thickness :

30μin

Total Number of Contacts :

8

Durability :

500 Cycles

Width :

6.2mm

PCB Contact Pattern :

RECTANGULAR

Factory Lead Time :

11 Weeks

Housing Color :

Black

Polarization Key :

POLARIZED KEY

Option :

GENERAL PURPOSE

Contact Shape :

Circular

Current Rating (Amps) :

2.2A

Contact Gender :

Male

Number of Positions :

8

Contact Material :

Phosphor Bronze

Insulation Resistance :

1GOhm

MIL Conformance :

No

Connector Type :

PLUG

Material :

Polyamide

Contact Type :

Male Pin

REACH SVHC :

No SVHC

Contact Finish - Post :

Tin

Fastening Type :

Latch Holder

Radiation Hardening :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions Loaded :

All

Series :

Datamate L-Tek

Termination :

Solder

ECCN Code :

EAR99

Stack Height (Mating) :

7.85mm 8.45mm 10.5mm 14.25mm

IEC Conformance :

No

Flammability Rating :

UL94 V-0

Reliability :

COMMERCIAL

Style :

Board to Board or Cable

UL Flammability Code :

94V-0

Pbfree Code :

yes

Voltage - Rated :

800V
