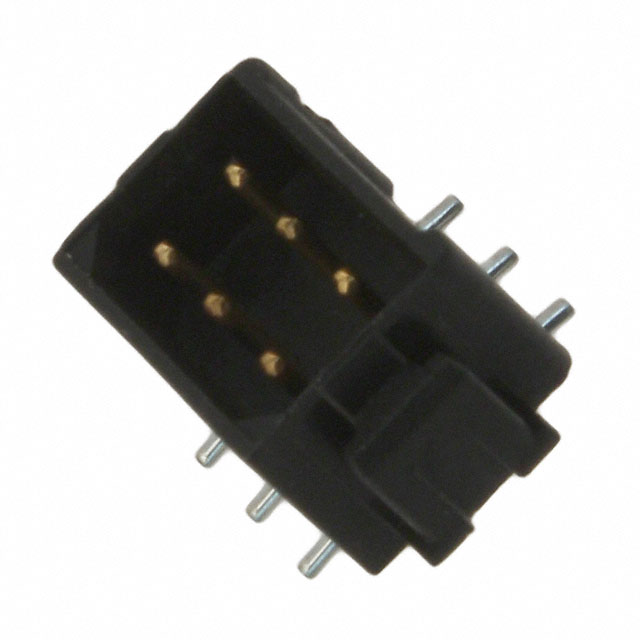

M80-8260642

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Material :

Nylon

PCB Contact Pattern :

RECTANGULAR

Contact Shape :

Circular

Max Current Rating :

3A

Reference Standard :

UL

Material Flammability Rating :

UL94 V-0

Number of Rows :

2

Row Spacing - Mating :

0.079 (2.00mm)

Style :

Board to Board or Cable

Length :

9.55mm

Contact Finish - Post :

Tin

Mating Contact Pitch :

0.079 inch

Housing Material :

Polyamide

Published :

2006

Depth :

5.96mm

Fastening Type :

Latch Holder

Reliability :

COMMERCIAL

RoHS Status :

ROHS3 Compliant

Pitch - Mating :

0.079 2.00mm

JESD-609 Code :

e3

Pbfree Code :

yes

Stack Height (Mating) :

7.85mm 8.45mm 10.5mm 14.25mm

Number Of PCB Rows :

2

Housing Color :

Black

Operating Temperature :

-55°C~125°C

Contact Material :

Phosphor Bronze

Durability :

500 Cycles

Flammability Rating :

UL94 V-0

Contact Finish Thickness - Post :

118.1μin 3.00μm

Number of Positions :

6

Voltage - Rated :

800V

Option :

GENERAL PURPOSE

Polarization Key :

POLARIZED KEY

ECCN Code :

EAR99

Contact Type :

Male Pin

Total Number of Contacts :

6

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Mounting Type :

Surface Mount

Insulation Height :

0.205 5.20mm

Series :

Datamate L-Tek

IEC Conformance :

No

Radiation Hardening :

No

Current Rating :

3A

REACH SVHC :

No SVHC

Mount :

Surface Mount

Connector Type :

PLUG

Voltage - Rated DC :

120V

Filter Feature :

No

Current Rating (Amps) :

2.2A

Max Voltage Rating (AC) :

120V

MIL Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

UL Flammability Code :

94V-0

Shrouding :

Shrouded - 4 Wall

Factory Lead Time :

11 Weeks

DIN Conformance :

No

Contact Gender :

Male

Additional Feature :

RoHS Compliant

Number of Conductors :

ONE

Contact Resistance :

25mOhm

Insulation Resistance :

100MOhm

Mixed Contacts :

No

Packaging :

Tube

Termination :

Solder

Plating Thickness :

30μin

Number of Positions Loaded :

All

Orientation :

Straight

Contact Finish - Mating :

Gold

Contact Finish Thickness - Mating :

29.5μin 0.75μm
