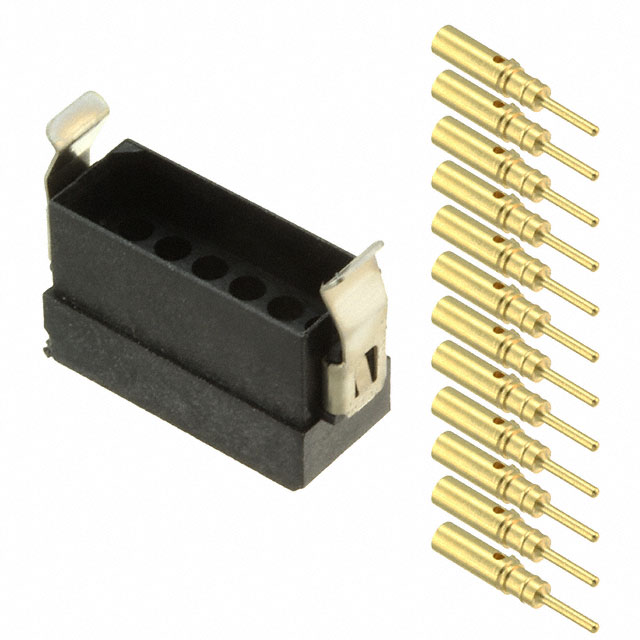

M80-8161205

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Insulation Resistance :

100000000Ohm

Mount :

Free Hanging

Option :

GENERAL PURPOSE

Body Depth :

0.354 inch

Wire Gauge :

24-28 AWG

Color :

Black

Factory Lead Time :

7 Weeks

RoHS Status :

ROHS3 Compliant

Cable Termination :

Crimp

Fastening Type :

Friction Lock

Wire Type :

Discrete

MIL Conformance :

No

Series :

Datamate L-Tek

Rated Current (Signal) :

3A

Contact Finish :

Gold

HTS Code :

8536.69.40.40

ECCN Code :

EAR99

Contact Gender :

Male

Mixed Contacts :

No

Number of Positions :

12

REACH SVHC :

No SVHC

Contact Material :

Brass

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Operating Temperature (Min) :

-55°C

Reach Compliance Code :

not_compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Rows :

2

Row Spacing :

0.079 (2.00mm)

Packaging :

Bulk

UL Flammability Code :

94V-0

DIN Conformance :

No

IEC Conformance :

No

Published :

2011

Pbfree Code :

yes

Reference Standard :

UL

Contact Finish Thickness :

10.0μin 0.25μm

Durability :

500 Cycles

Reliability :

COMMERCIAL

Mounting Type :

Free Hanging (In-Line)

Filter Feature :

No

Total Number of Contacts :

12

Connector Type :

PLUG

Wire Gauge (Max) :

28 AWG

Contact Type :

Male Pin

Body Length or Diameter :

0.634 inch

Wire Gauge (Min) :

24 AWG

Insulation Material :

Glass Filled Polyamide

JESD-609 Code :

e4

Additional Feature :

LATCHED

Pitch :

0.079 2.00mm
