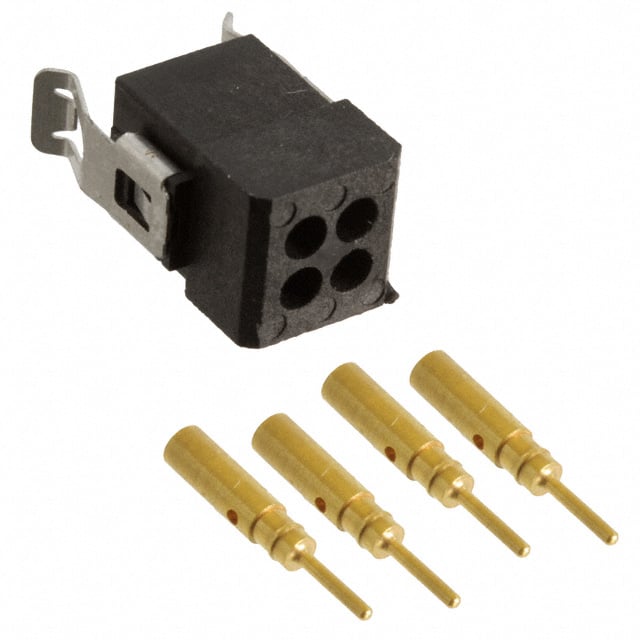

M80-8130405

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

DIN Conformance :

No

Orientation :

Straight

Body/Shell Style :

PLUG

Color :

Black

Wire Gauge :

22 AWG

Contact Resistance :

25mOhm

Number of Rows :

2

Connector Type :

Header

Mounting Type :

Free Hanging (In-Line)

Reference Standard :

UL

Factory Lead Time :

13 Weeks

Min Operating Temperature :

-55°C

Max Operating Temperature :

125°C

Additional Feature :

LATCHED

Max Voltage Rating (AC) :

120V

Cable Termination :

Crimp

Reach Compliance Code :

not_compliant

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Row Spacing :

0.079 (2.00mm)

Wire Type :

Discrete

Contact Type :

Male Pin

Insulation Resistance :

100000000Ohm

Reliability :

COMMERCIAL

Length :

8.1mm

REACH SVHC :

No SVHC

Mount :

Free Hanging

IEC Conformance :

No

Published :

2005

Filter Feature :

No

Packaging :

Bulk

Rated Current (Signal) :

3A

JESD-609 Code :

e4

Wire/Cable Gauge :

22 AWG

Depth :

9mm

Pbfree Code :

yes

Contact Gender :

Male

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Pitch :

0.079 2.00mm

Durability :

500 Cycles

Contact Material :

Brass

Max Current Rating :

3A

Contact Finish Thickness :

10.0μin 0.25μm

Mixed Contacts :

No

MIL Conformance :

No

Contact Finish :

Gold

Total Number of Contacts :

4

Number of Positions :

4

Fastening Type :

Latch Holder

Housing Material :

Polyamide

Series :

Datamate L-Tek

Option :

GENERAL PURPOSE
