M80-8121205
Or copy the link below:
- Mfr.Part #
- M80-8121205
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description

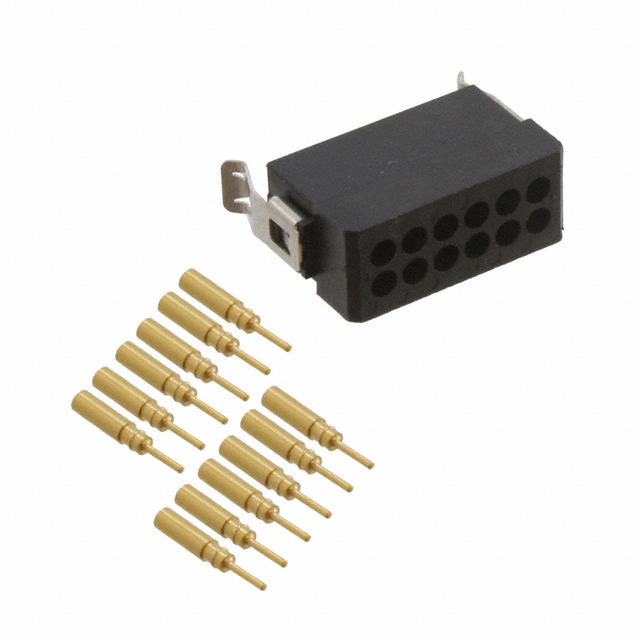

- CONN PLUG 12POS CRIMP 24-28AWG
- Stock
- 300
- In Stock ：
- 300
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Free Hanging, Panel Mount
- REACH SVHC :
- No SVHC
- Row Spacing :
- 0.079 (2.00mm)
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Radiation Hardening :
- No
- Pbfree Code :
- yes
- Durability :
- 500 Cycles
- Cable Termination :
- Crimp
- Additional Feature :
- COMPATIBLE CONTACT: M80-0410005
- Contact Resistance :
- 25mOhm
- Contact Type :
- Male Pin
- Factory Lead Time :
- 13 Weeks
- Reference Standard :
- UL
- DIN Conformance :
- No
- Orientation :
- Straight
- Length :
- 16.1mm
- JESD-609 Code :
- e4
- Fastening Type :
- Latch Holder
- Color :
- Black
- Max Voltage Rating (AC) :
- 120V
- UL Flammability Code :
- 94V-0
- Contact Gender :
- Male
- Wire Gauge (Max) :
- 28 AWG
- RoHS Status :
- ROHS3 Compliant
- Published :
- 2011
- Series :
- Datamate L-Tek
- Housing Material :
- Polyamide
- Wire Gauge :
- 24-28 AWG
- Mixed Contacts :
- No
- Mounting Type :
- Free Hanging (In-Line)
- Reliability :
- COMMERCIAL
- Contact Material :
- Brass
- MIL Conformance :
- No
- Pitch :
- 0.079 2.00mm
- Number of Rows :
- 2
- Total Number of Contacts :
- 12
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Filter Feature :
- No
- Packaging :
- Bulk
- Wire Type :
- Discrete
- Body Depth :
- 0.354 inch
- Wire Gauge (Min) :
- 24 AWG
- Number of Positions :
- 12
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Insulation Resistance :
- 100000000Ohm
- Option :
- GENERAL PURPOSE
- Body/Shell Style :
- PLUG
- Min Operating Temperature :
- -55°C
- Mount :
- Free Hanging
- Rated Current (Signal) :
- 3A
- Connector Type :
- Header
- Contact Finish :
- Gold
- IEC Conformance :
- No
- Max Current Rating :
- 3A
- Max Operating Temperature :
- 125°C
- Datasheets
- M80-8121205
M80-8121205 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from Harwin Inc. stock available at Xinshop
Features of the Harwin Rectangular Connectors - Free Hanging, Panel Mount M80-8121205 include:
• 6+6 POS male contacts with 24-28 AWG wire
• Latching mechanism for secure connection
• Free hanging or panel mount applications
• Suitable for use in a variety of industries
Applications of the Harwin Rectangular Connectors - Free Hanging, Panel Mount M80-8121205 include:
• Automotive
• Industrial
• Consumer electronics
• Telecommunications
• Medical devices
• Robotics
