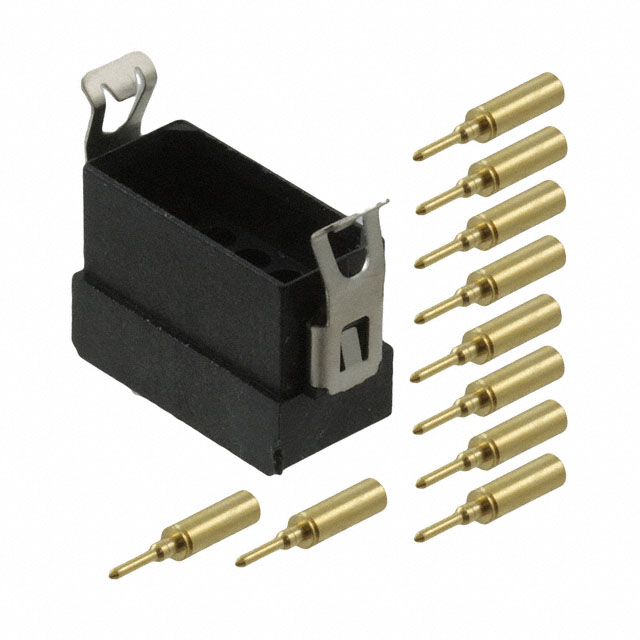

M80-8121005

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Number of Positions :

10

Wire Gauge (Max) :

28 AWG

Durability :

500 Cycles

HTS Code :

8536.69.40.40

Cable Termination :

Crimp

Rated Current (Signal) :

3A

Row Spacing :

0.079 (2.00mm)

Voltage - Rated DC :

120V

MIL Conformance :

No

Contact Resistance :

25mOhm

Wire Type :

Discrete

Reference Standard :

UL

Published :

2011

Max Current Rating :

3A

Mixed Contacts :

No

Length :

14.1mm

Factory Lead Time :

13 Weeks

Pbfree Code :

yes

Body Depth :

0.354 inch

Option :

GENERAL PURPOSE

Min Operating Temperature :

-55°C

Number of Rows :

2

UL Flammability Code :

94V-0

Mount :

Free Hanging

Pitch :

0.079 2.00mm

DIN Conformance :

No

Max Operating Temperature :

125°C

Series :

Datamate L-Tek

Current Rating :

3.3A

Fastening Type :

Latch Holder

Wire Gauge (Min) :

24 AWG

Voltage - Rated AC :

120V

Packaging :

Bulk

Body/Shell Style :

PLUG

Wire Gauge :

24-28 AWG

Filter Feature :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Type :

Male Pin

Housing Material :

Polyamide

Contact Finish Thickness :

10.0μin 0.25μm

Max Voltage Rating (AC) :

120V

Contact Gender :

Male

Color :

Black

RoHS Status :

ROHS3 Compliant

IEC Conformance :

No

Radiation Hardening :

No

Insulation Resistance :

100MOhm

Flammability Rating :

UL94 V-0

Mounting Type :

Free Hanging (In-Line)

JESD-609 Code :

e4

Total Number of Contacts :

10

REACH SVHC :

No SVHC

ECCN Code :

EAR99

Contact Material :

Brass

Reliability :

COMMERCIAL

Contact Finish :

Gold

Connector Type :

Header

Orientation :

Straight

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
