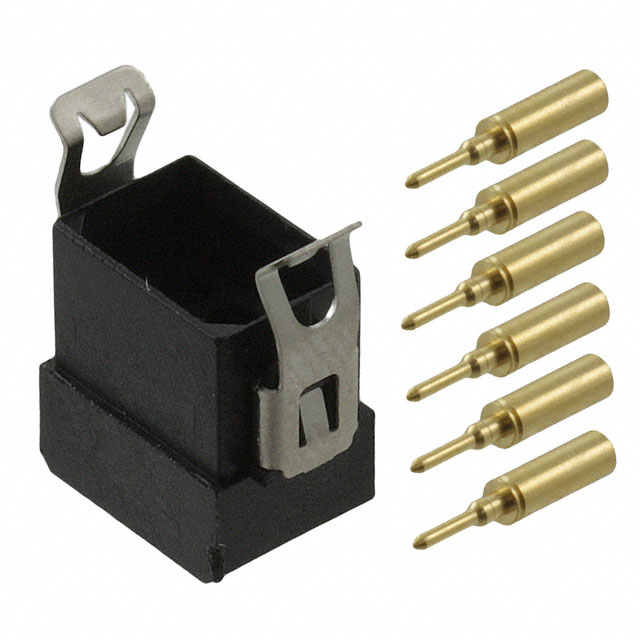

M80-8120605

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Published :

2005

Body Depth :

0.354 inch

Pitch :

0.079 2.00mm

Durability :

500 Cycles

RoHS Status :

ROHS3 Compliant

UL Flammability Code :

94V-0

Connector Type :

Header

Contact Type :

Male Pin

Body/Shell Style :

PLUG

Number of Rows :

2

MIL Conformance :

No

Contact Finish :

Gold

Mount :

Free Hanging

Cable Termination :

Crimp

Rated Current (Signal) :

3A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire Type :

Discrete

Fastening Type :

Latch Holder

JESD-609 Code :

e4

Reliability :

COMMERCIAL

Series :

Datamate L-Tek

Contact Resistance :

25mOhm

Filter Feature :

No

REACH SVHC :

No SVHC

Packaging :

Bulk

Contact Material :

Brass

Max Operating Temperature :

125°C

Orientation :

Straight

Reference Standard :

UL

Mixed Contacts :

No

Pbfree Code :

yes

Voltage - Rated :

360V

Contact Finish Thickness :

10.0μin 0.25μm

Additional Feature :

COMPATIBLE CONTACT: M80-0410005

Radiation Hardening :

No

Number of Positions :

6

Row Spacing :

0.079 (2.00mm)

Option :

GENERAL PURPOSE

Factory Lead Time :

13 Weeks

Max Voltage Rating (AC) :

120V

Current Rating :

3A

Contact Gender :

Male

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Wire Gauge :

24-28 AWG

Min Operating Temperature :

-55°C

Total Number of Contacts :

6

Wire Gauge (Max) :

28 AWG

IEC Conformance :

No

DIN Conformance :

No

Wire Gauge (Min) :

24 AWG

Length :

10.1mm

Mounting Type :

Free Hanging (In-Line)

Max Current Rating :

3A

Insulation Resistance :

100000000Ohm

Color :

Black

Housing Material :

Polyamide
