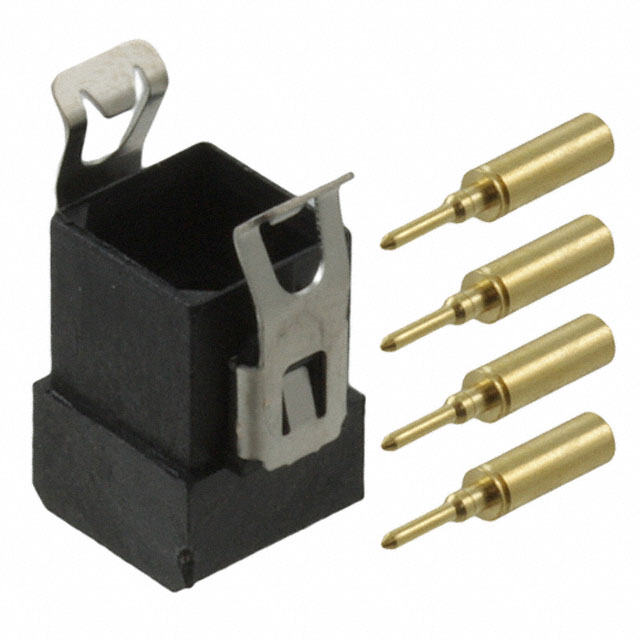

M80-8120405

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Cable Termination :

Crimp

Max Operating Temperature :

125°C

Contact Resistance :

25mOhm

IEC Conformance :

No

Housing Material :

Polyamide

Max Voltage Rating (AC) :

120V

RoHS Status :

ROHS3 Compliant

REACH SVHC :

No SVHC

Color :

Black

Wire Gauge (Min) :

24 AWG

Series :

Datamate L-Tek

Wire Type :

Discrete

Published :

2000

Contact Finish Thickness :

10.0μin 0.25μm

MIL Conformance :

No

Total Number of Contacts :

4

Fastening Type :

Latch Holder

Contact Material :

Brass, Copper

Radiation Hardening :

No

Insulation Resistance :

100000000Ohm

Body/Shell Style :

PLUG

Contact Gender :

Male

Durability :

500 Cycles

Option :

GENERAL PURPOSE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pbfree Code :

yes

Wire Gauge (Max) :

28 AWG

Pitch :

0.079 2.00mm

Connector Type :

Header

Orientation :

Straight

Packaging :

Bulk

Filter Feature :

No

Contact Type :

Male Pin

DIN Conformance :

No

Mount :

Free Hanging

Reference Standard :

UL

Factory Lead Time :

13 Weeks

Min Operating Temperature :

-55°C

Contact Finish :

Gold

Mounting Type :

Free Hanging (In-Line)

Rated Current (Signal) :

3A

Row Spacing :

0.079 (2.00mm)

Number of Positions :

4

Length :

8.1mm

Mixed Contacts :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Number of Rows :

2

Reliability :

COMMERCIAL

JESD-609 Code :

e4

Wire Gauge :

24-28 AWG

Max Current Rating :

3A
