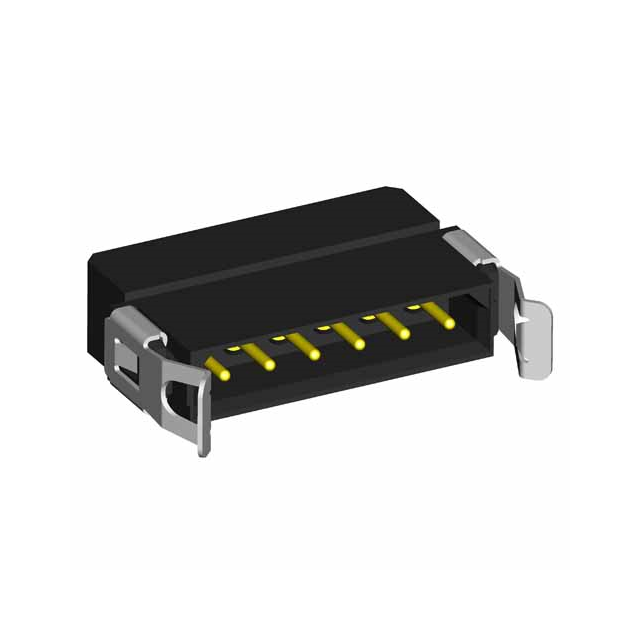

M80-8090305

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Contact Type :

Male Pin

Contact Design :

LOOSE

Mounting Type :

Free Hanging (In-Line)

Durability :

500 Cycles

Mixed Contacts :

No

Additional Feature :

RoHS Compliant

Total Number of Contacts :

3

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Option :

GENERAL PURPOSE

Published :

2011

UL Flammability Code :

94V-0

Series :

Datamate L-Tek

Wire Gauge :

22 AWG

Factory Lead Time :

10 Weeks

Mount :

Free Hanging

Pitch :

0.079 2.00mm

Wire/Cable Gauge :

22 AWG

Connector Type :

PLUG

IEC Conformance :

No

DIN Conformance :

No

Filter Feature :

No

RoHS Status :

ROHS3 Compliant

Reference Standard :

UL

Number of Positions :

3

Pbfree Code :

yes

Insulation Material :

Glass Filled Polyamide

JESD-609 Code :

e4

Number of Rows :

1

Contact Finish Thickness :

10.0μin 0.25μm

Wire Type :

Discrete

Contact Material :

Brass

Insertion Force-Max :

2.78 N

Contact Resistance :

25mOhm

Fastening Type :

Latch Holder

Polarization Key :

POLARIZED HOUSING

Contact Finish :

Gold

Reach Compliance Code :

not_compliant

Operating Temperature (Min) :

-55°C

Cable Termination :

Crimp

Rated Current (Signal) :

3A

MIL Conformance :

No

Reliability :

COMMERCIAL

Packaging :

Bulk
