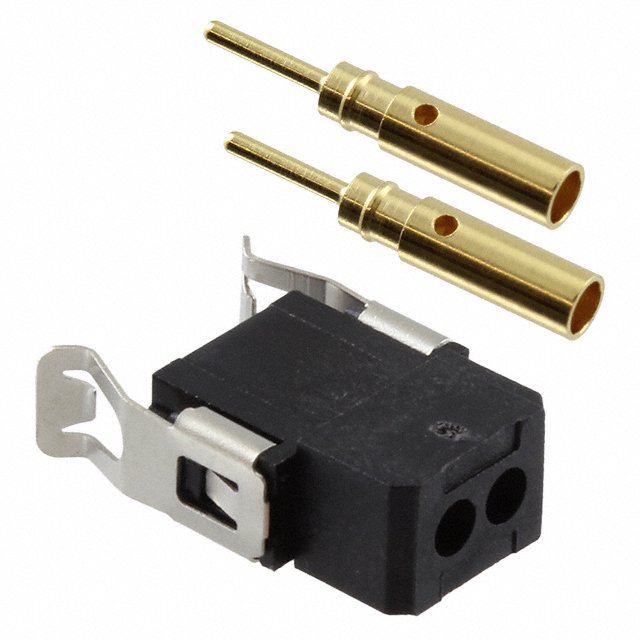

M80-8090205

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Wire/Cable Gauge :

22 AWG

Cable Termination :

Crimp

DIN Conformance :

No

Reach Compliance Code :

not_compliant

Mount :

Free Hanging

Flammability Rating :

UL94 V-0

Number of Positions :

2

Contact Finish Thickness :

10.0μin 0.25μm

Option :

GENERAL PURPOSE

Package / Case :

SIL

Max Operating Temperature :

125°C

Packaging :

Bulk

Current Rating :

3A

Reference Standard :

UL

Published :

2013

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Filter Feature :

No

UL Flammability Code :

94V-0

JESD-609 Code :

e4

Pitch :

0.079 2.00mm

Contact Type :

Male Pin

Polarization Key :

POLARIZED HOUSING

Number of Rows :

1

Pbfree Code :

yes

HTS Code :

8536.69.40.40

Total Number of Contacts :

2

Additional Feature :

RoHS Compliant

Contact Gender :

Male

Series :

Datamate L-Tek

Housing Material :

Polyamide

Contact Material :

Brass

Body Depth :

0.354 inch

MIL Conformance :

No

Durability :

500 Cycles

Rated Current (Signal) :

3A

Factory Lead Time :

10 Weeks

Min Operating Temperature :

-55°C

IEC Conformance :

No

Insulation Resistance :

1GOhm

Wire Type :

Discrete

Mixed Contacts :

No

ECCN Code :

EAR99

Number of Conductors :

ONE

Mounting Type :

Free Hanging (In-Line)

Wire Gauge :

22 AWG

Fastening Type :

Latch Holder

Contact Finish :

Gold

Voltage - Rated :

120V

Reliability :

COMMERCIAL

Connector Type :

PLUG

RoHS Status :

ROHS3 Compliant
