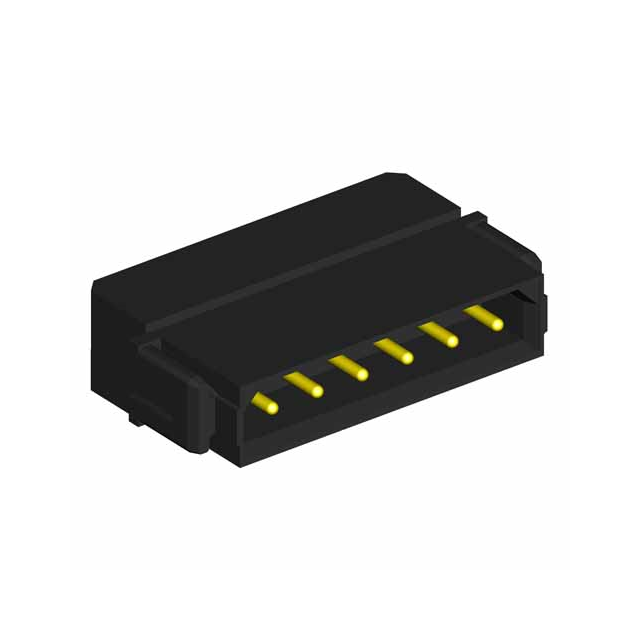

M80-8060405
Or copy the link below:
- Mfr.Part #
- M80-8060405
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG 4P CRIMP 24-28AWG GOLD
- Stock
- 49,509
- In Stock ：
- 49,509
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Free Hanging, Panel Mount
- Pitch :
- 0.079 2.00mm
- Wire Gauge :
- 24-28 AWG
- Mounting Type :
- Free Hanging (In-Line)
- Mount :
- Free Hanging
- Reliability :
- COMMERCIAL
- Factory Lead Time :
- 11 Weeks
- Total Number of Contacts :
- 4
- JESD-609 Code :
- e4
- Reference Standard :
- UL
- Cable Termination :
- Crimp
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish :
- Gold
- Wire Type :
- Discrete
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Polarization Key :
- POLARIZED HOUSING
- Wire Gauge (Max) :
- 28 AWG
- Contact Material :
- NOT SPECIFIED
- Number of Rows :
- 1
- Color :
- Black
- Durability :
- 500 Cycles
- Published :
- 2013
- Number of Positions :
- 4
- Operating Temperature (Min) :
- -55°C
- RoHS Status :
- ROHS3 Compliant
- Contact Resistance :
- 25mOhm
- Insulation Material :
- Glass Filled Polyamide
- Rated Current (Signal) :
- 3A
- Pbfree Code :
- yes
- Contact Type :
- Male Pin
- Connector Type :
- PLUG
- Packaging :
- Bulk
- Wire Gauge (Min) :
- 24 AWG
- Series :
- Datamate L-Tek
- Datasheets
- M80-8060405
M80-8060405 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from Harwin Inc. stock available at Xinshop
