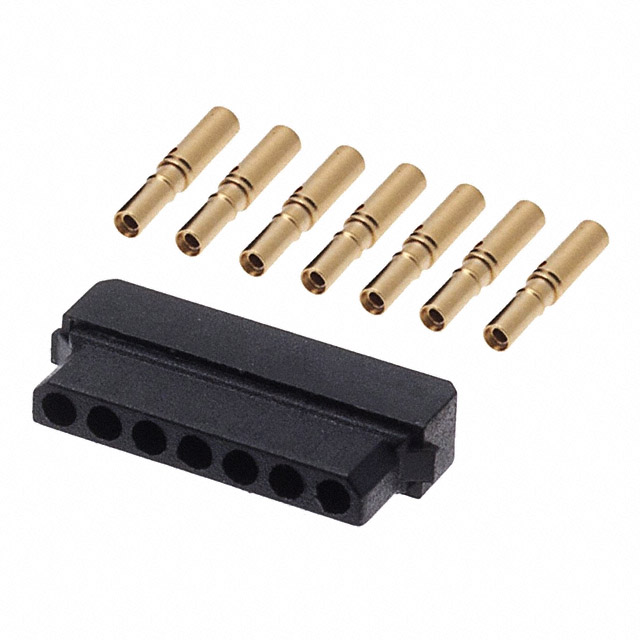

M80-7980705

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Contact Resistance :

25mOhm

Reference Standard :

UL

Reach Compliance Code :

not_compliant

Number of Positions :

7

Wire Gauge :

28-32 AWG

Filter Feature :

No

Published :

2012

Factory Lead Time :

13 Weeks

Wire Type :

Discrete

Total Number of Contacts :

7

Contact Gender :

FEMALE

Option :

GENERAL PURPOSE

Series :

Datamate L-Tek

RoHS Status :

ROHS3 Compliant

Contact Material :

Brass, Copper

Reliability :

COMMERCIAL

Housing Material :

Polyamide

Max Operating Temperature :

125°C

IEC Conformance :

No

REACH SVHC :

No SVHC

Color :

Black

Polarization Key :

POLARIZED HOUSING

Number of Rows :

1

Wire Gauge (Min) :

32 AWG

Mount :

Free Hanging

Packaging :

Bulk

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

DIN Conformance :

No

MIL Conformance :

No

Contact Finish :

Gold

Current Rating :

3A

Insulation Resistance :

1GOhm

Cable Termination :

Crimp

UL Flammability Code :

94V-0

Mounting Type :

Free Hanging (In-Line)

Package / Case :

SIL

Contact Finish Thickness :

11.8μin 0.30μm

Min Operating Temperature :

-55°C

Voltage - Rated :

360V

Connector Type :

Receptacle

Rated Current (Signal) :

3A

Durability :

500 Cycles

Wire Gauge (Max) :

28 AWG

Contact Type :

Female Socket

Fastening Type :

Locking Ramp

Mixed Contacts :

No

Pbfree Code :

yes

Pitch :

0.079 2.00mm
