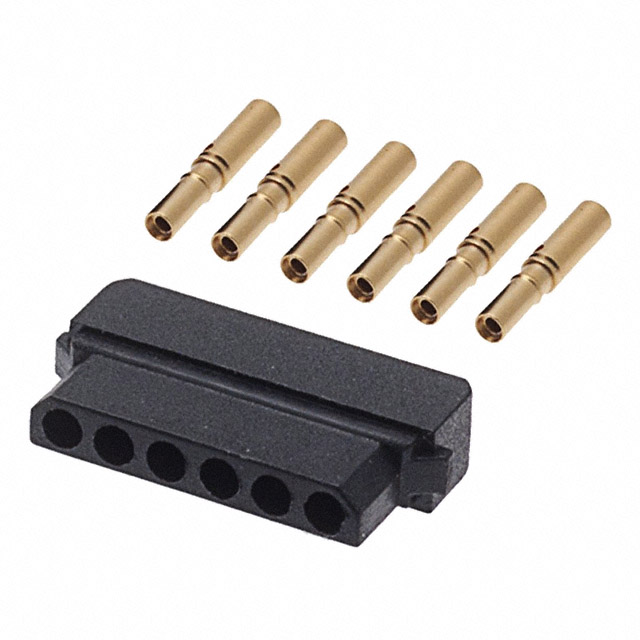

M80-7980605

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Contact Finish :

Gold

Filter Feature :

No

Total Number of Contacts :

6

Contact Resistance :

25mOhm

Option :

GENERAL PURPOSE

Factory Lead Time :

13 Weeks

Number of Rows :

1

Mixed Contacts :

No

IEC Conformance :

No

Pbfree Code :

yes

Number of Positions :

6

Pitch :

0.079 2.00mm

Wire Size (Max) :

28 AWG

RoHS Status :

ROHS3 Compliant

Rated Current (Signal) :

3A

Contact Finish Thickness :

11.8μin 0.30μm

Published :

2012

Wire Gauge :

28-32 AWG

Packaging :

Bulk

Durability :

500 Cycles

Insulation Material :

Glass Filled Polyamide

Fastening Type :

Locking Ramp

UL Flammability Code :

94V-0

Contact Material :

NOT SPECIFIED

Mounting Type :

Free Hanging (In-Line)

Reliability :

COMMERCIAL

Connector Type :

Receptacle

Operating Temperature (Min) :

-55°C

Cable Termination :

Crimp

MIL Conformance :

No

Color :

Black

Polarization Key :

POLARIZED HOUSING

JESD-609 Code :

e4

Series :

Datamate L-Tek

DIN Conformance :

No

Reference Standard :

UL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire Type :

Discrete

Contact Type :

Female Socket
