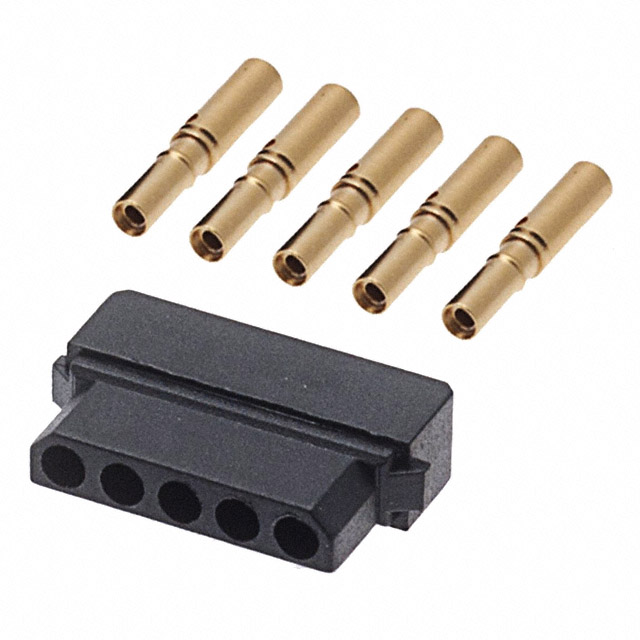

M80-7980505

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Wire Gauge (Max) :

32 AWG

Contact Gender :

FEMALE

ECCN Code :

EAR99

Housing Material :

Polyamide

Reliability :

COMMERCIAL

Rated Current (Signal) :

3A

Max Operating Temperature :

125°C

DIN Conformance :

No

Color :

Black

Reference Standard :

UL

Total Number of Contacts :

5

Contact Type :

Female Socket

Wire Gauge :

28-32 AWG

Packaging :

Bulk

Wire Type :

Discrete

Current Rating :

3A

Contact Material :

Brass, Copper

UL Flammability Code :

94V-0

Pitch :

0.079 2.00mm

Insulation Resistance :

1GOhm

Series :

Datamate L-Tek

REACH SVHC :

No SVHC

JESD-609 Code :

e4

Published :

2012

Contact Finish :

Gold

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

MIL Conformance :

No

Connector Type :

Receptacle

Mounting Type :

Free Hanging (In-Line)

Number of Rows :

1

Option :

GENERAL PURPOSE

Mixed Contacts :

No

Contact Finish Thickness :

11.8μin 0.30μm

Factory Lead Time :

13 Weeks

Number of Positions :

5

Min Operating Temperature :

-55°C

IEC Conformance :

No

Filter Feature :

No

Voltage - Rated :

360V

Fastening Type :

Locking Ramp

Wire Gauge (Min) :

28 AWG

Mount :

Free Hanging

Package / Case :

SIL

RoHS Status :

ROHS3 Compliant

Cable Termination :

Crimp

Polarization Key :

POLARIZED HOUSING
