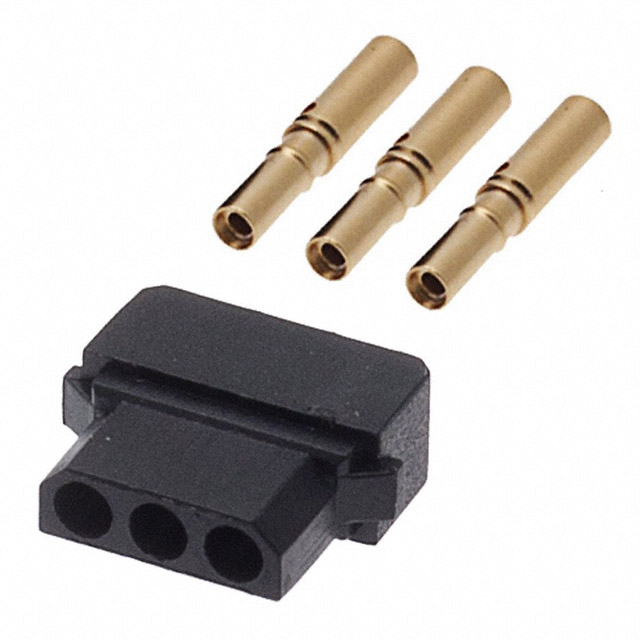

M80-7980305

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Rated Current (Signal) :

3A

Wire Gauge (Min) :

28 AWG

Housing Material :

Polyamide

DIN Conformance :

No

Factory Lead Time :

13 Weeks

JESD-609 Code :

e4

IEC Conformance :

No

RoHS Status :

ROHS3 Compliant

Pitch :

0.079 2.00mm

Current Rating :

3A

UL Flammability Code :

94V-0

Packaging :

Bulk

REACH SVHC :

No SVHC

Filter Feature :

No

Contact Gender :

FEMALE

Contact Finish :

Gold

Color :

Black

Mount :

Free Hanging

Pbfree Code :

yes

Series :

Datamate L-Tek

Number of Positions :

3

ECCN Code :

EAR99

MIL Conformance :

No

Package / Case :

SIL

Voltage - Rated :

360V

Wire Type :

Discrete

Reference Standard :

UL

Min Operating Temperature :

-55°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Published :

2012

Wire Gauge (Max) :

32 AWG

Option :

GENERAL PURPOSE

Contact Finish Thickness :

11.8μin 0.30μm

Reliability :

COMMERCIAL

Total Number of Contacts :

3

Polarization Key :

POLARIZED HOUSING

Cable Termination :

Crimp

Fastening Type :

Locking Ramp

Connector Type :

Receptacle

Number of Rows :

1

Max Operating Temperature :

125°C

Insulation Resistance :

1GOhm

Mixed Contacts :

No

Contact Resistance :

25mOhm

Contact Material :

Brass, Copper

Durability :

500 Cycles

Wire Gauge :

28-32 AWG

Contact Type :

Female Socket

Mounting Type :

Free Hanging (In-Line)
