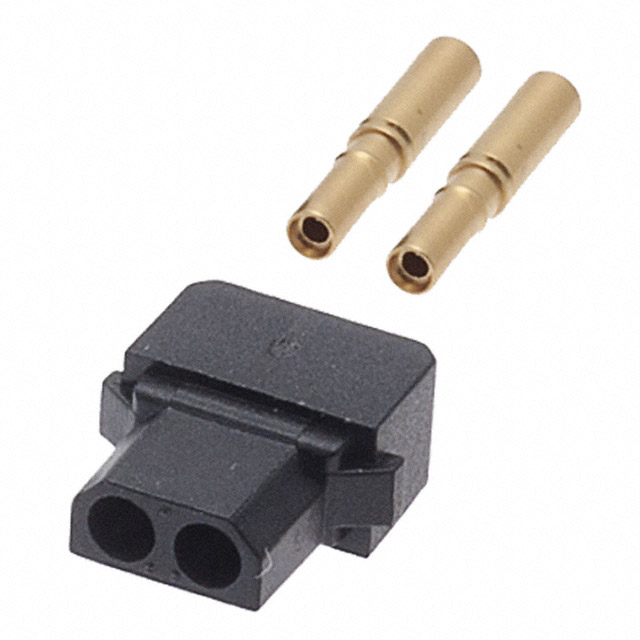

M80-7980205

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Wire Type :

Discrete

HTS Code :

8536.69.40.40

Min Operating Temperature :

-55°C

Number of Rows :

1

Contact Gender :

FEMALE

REACH SVHC :

No SVHC

Packaging :

Bulk

Filter Feature :

No

Published :

2012

Cable Termination :

Crimp

Reference Standard :

UL

Reliability :

COMMERCIAL

Voltage - Rated :

360V

Wire Gauge :

28-32 AWG

Package / Case :

SIL

Max Operating Temperature :

125°C

Contact Type :

Female Socket

Color :

Black

Number of Positions :

2

DIN Conformance :

No

Insulation Resistance :

1GOhm

Rated Current (Signal) :

3A

ECCN Code :

EAR99

Pbfree Code :

yes

Polarization Key :

POLARIZED HOUSING

Current Rating :

3A

UL Flammability Code :

94V-0

Contact Finish :

Gold

Reach Compliance Code :

not_compliant

Mounting Type :

Free Hanging (In-Line)

Pitch :

0.079 2.00mm

Factory Lead Time :

13 Weeks

IEC Conformance :

No

Option :

GENERAL PURPOSE

Mixed Contacts :

No

Mount :

Free Hanging

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Total Number of Contacts :

2

Fastening Type :

Locking Ramp

Contact Material :

Brass, Copper

Wire Gauge (Min) :

28 AWG

Connector Type :

Receptacle

Series :

Datamate L-Tek

Contact Finish Thickness :

11.8μin 0.30μm

RoHS Status :

ROHS3 Compliant

MIL Conformance :

No

Housing Material :

Polyamide

Wire Gauge (Max) :

32 AWG

Durability :

500 Cycles
