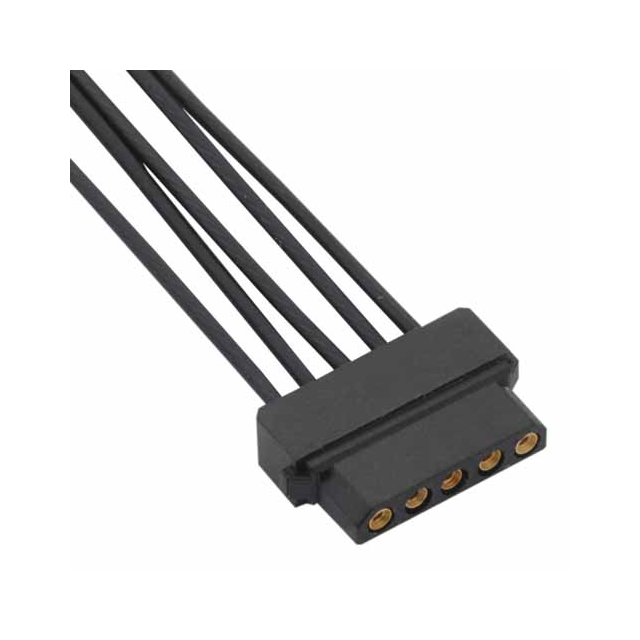

M80-7980201

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Reference Standard :

UL

Contact Finish Thickness :

11.8μin 0.30μm

Number of Positions :

2

Pitch :

0.079 2.00mm

Color :

Black

MIL Conformance :

No

Insulation Material :

Glass Filled Polyamide

ECCN Code :

EAR99

Wire Gauge :

28-32 AWG

Cable Termination :

Crimp

Factory Lead Time :

13 Weeks

Mounting Type :

Free Hanging (In-Line)

Mixed Contacts :

No

Fastening Type :

Locking Ramp

Durability :

500 Cycles

Connector Type :

Receptacle

Packaging :

Bulk

Rated Current (Signal) :

3A

Operating Temperature (Min) :

-55°C

Mount :

Free Hanging

Published :

2013

Number of Rows :

1

DIN Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire Gauge (Min) :

28 AWG

Option :

GENERAL PURPOSE

Reliability :

COMMERCIAL

Pbfree Code :

yes

Polarization Key :

POLARIZED HOUSING

Reach Compliance Code :

not_compliant

Series :

Datamate L-Tek

RoHS Status :

ROHS3 Compliant

HTS Code :

8536.69.40.40

Package / Case :

SIL

IEC Conformance :

No

Wire Type :

Discrete

Contact Material :

NOT SPECIFIED

Filter Feature :

No

Wire Gauge (Max) :

32 AWG

UL Flammability Code :

94V-0

Contact Finish :

Gold

Contact Type :

Female Socket

Total Number of Contacts :

2
