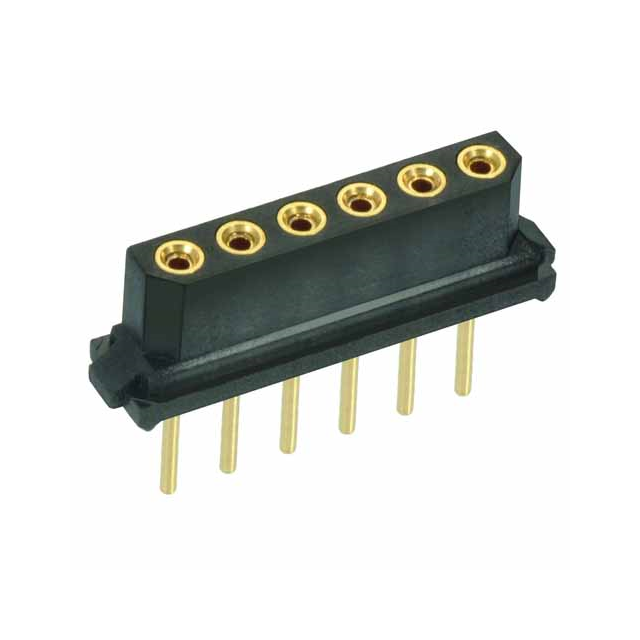

M80-7902245

Manufacturer :

Harwin

Product Category :

Headers, Receptacles, Female Sockets

Reference Standard :

UL

IEC Conformance :

No

Series :

Datamate L-Tek

Termination :

Solder

Terminal Pitch :

2mm

Durability :

500 Cycles

Pitch - Mating :

0.079 2.00mm

Applications :

Automotive, General Purpose, Military

PCB Contact Pattern :

RECTANGULAR

Contact Shape :

Circular

Published :

2009

Package / Case :

SIL

Factory Lead Time :

16 Weeks

Body Depth :

0.202 inch

Contact Finish Thickness - Post :

10.0μin 0.25μm

Mixed Contacts :

No

HTS Code :

8536.69.40.40

Insulation Color :

Black

RoHS Status :

ROHS3 Compliant

MIL Conformance :

No

Contact Resistance :

25mOhm

Insertion Force-Max :

2.78 N

Contact Type :

Female Socket

Mating Contact Pitch :

0.079 inch

Stack Height (Mating) :

7.23mm 7.83mm

Insulation Height :

0.202 5.14mm

Number of Positions Loaded :

All

Number Of PCB Rows :

1

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mount :

Through Hole

Mounting Type :

Through Hole

Pbfree Code :

yes

Number of Rows :

1

Contact Length - Post :

0.177 4.50mm

ECCN Code :

EAR99

Contact Material :

BERYLLIUM COPPER

Fastening Type :

Locking Ramp

UL Flammability Code :

94V-0

Filter Feature :

No

Additional Feature :

POLARISED

Connector Type :

Receptacle

Insulation Material :

Polyamide (PA46), Nylon 4/6, Glass Filled

Material Flammability Rating :

UL94 V-0

Reliability :

COMMERCIAL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packaging :

Tube

Voltage - Rated :

120V

Number of Positions :

22

Contact Finish Thickness - Mating :

12.0μin 0.30μm

JESD-609 Code :

e4

DIN Conformance :

No

Operating Temperature :

-55°C~125°C

Style :

Board to Board or Cable

Number of Conductors :

ONE

Contact Finish - Mating :

Gold
