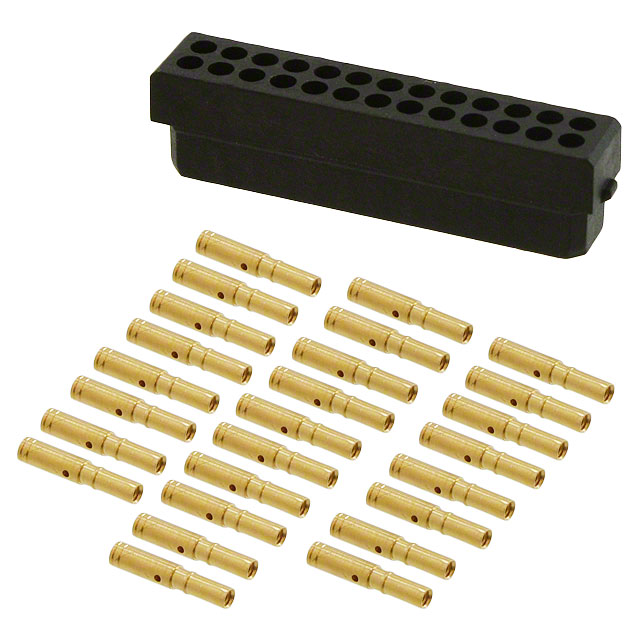

M80-7882605

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Contact Material :

Brass, Copper

MIL Conformance :

No

Filter Feature :

No

Wire Gauge (Min) :

28 AWG

Fastening Type :

Locking Ramp

Wire Gauge :

28-32 AWG

JESD-609 Code :

e4

Insulation Resistance :

1GOhm

Durability :

500 Cycles

REACH SVHC :

No SVHC

Total Number of Contacts :

26

IEC Conformance :

No

Reference Standard :

UL

Reliability :

COMMERCIAL

Row Spacing :

0.079 (2.00mm)

Packaging :

Bulk

Pitch :

0.079 2.00mm

HTS Code :

8536.69.40.40

Contact Gender :

FEMALE

Number of Positions :

26

Color :

Black

Current Rating :

3A

ECCN Code :

EAR99

Option :

GENERAL PURPOSE

Contact Type :

Female Socket

Contact Finish :

Gold

RoHS Status :

ROHS3 Compliant

Cable Termination :

Crimp

Voltage - Rated :

360V

Rated Current (Signal) :

3A

Wire Gauge (Max) :

32 AWG

Wire Type :

Discrete

Max Operating Temperature :

125°C

Mount :

Free Hanging

Housing Material :

Polyamide

Mixed Contacts :

No

Min Operating Temperature :

-55°C

Factory Lead Time :

13 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Connector Type :

Receptacle

Number of Rows :

2

Pbfree Code :

yes

Body Length or Diameter :

1.148 inch

Published :

2012

Contact Finish Thickness :

11.8μin 0.30μm

Mounting Type :

Free Hanging (In-Line)

DIN Conformance :

No

UL Flammability Code :

94V-0

Series :

Datamate L-Tek
