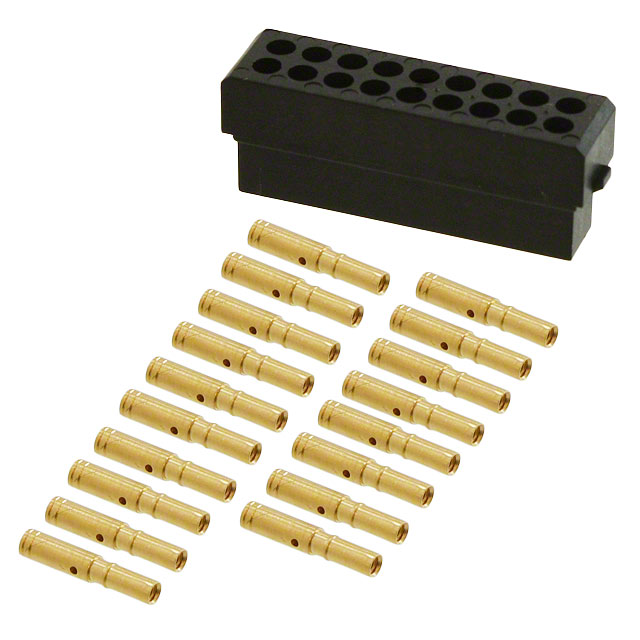

M80-7881805

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Durability :

500 Cycles

Reference Standard :

UL

Wire Gauge (Min) :

32 AWG

Factory Lead Time :

13 Weeks

Cable Termination :

Crimp

ECCN Code :

EAR99

JESD-609 Code :

e4

MIL Conformance :

No

Filter Feature :

No

Pbfree Code :

yes

Number of Rows :

2

Fastening Type :

Locking Ramp

Number of Positions :

18

Contact Material :

Brass, Copper

DIN Conformance :

No

HTS Code :

8536.69.40.40

Packaging :

Bulk

RoHS Status :

ROHS3 Compliant

Min Operating Temperature :

-55°C

IEC Conformance :

No

Reliability :

COMMERCIAL

Mixed Contacts :

No

REACH SVHC :

No SVHC

Rated Current (Signal) :

3A

Pitch :

0.079 2.00mm

Wire Gauge :

28-32 AWG

Contact Gender :

FEMALE

Contact Finish Thickness :

11.8μin 0.30μm

Contact Finish :

Gold

Insulation Resistance :

1GOhm

Max Operating Temperature :

125°C

Voltage - Rated :

360V

Connector Type :

Receptacle

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Row Spacing :

0.079 (2.00mm)

Mount :

Free Hanging

Wire Type :

Discrete

Published :

2012

Color :

Black

Mounting Type :

Free Hanging (In-Line)

Series :

Datamate L-Tek

UL Flammability Code :

94V-0

Current Rating :

3A

Wire Gauge (Max) :

28 AWG

Total Number of Contacts :

18

Housing Material :

Polyamide

Body Length or Diameter :

0.833 inch

Option :

GENERAL PURPOSE

Contact Type :

Female Socket
