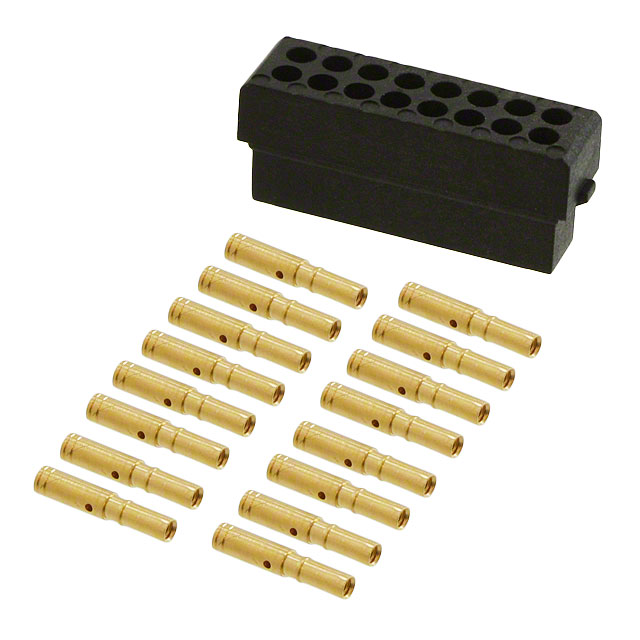

M80-7881605

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Option :

GENERAL PURPOSE

Number of Positions :

16

Insulation Resistance :

1GOhm

Mixed Contacts :

No

Durability :

500 Cycles

HTS Code :

8536.69.40.40

Min Operating Temperature :

-55°C

MIL Conformance :

No

Wire Gauge (Min) :

32 AWG

Current Rating :

3A

Color :

Black

Contact Type :

Female Socket

Connector Type :

Receptacle

UL Flammability Code :

94V-0

Mount :

Free Hanging

Filter Feature :

No

Housing Material :

Polyamide

Published :

2012

Wire Gauge :

28-32 AWG

ECCN Code :

EAR99

Mounting Type :

Free Hanging (In-Line)

Reference Standard :

UL

Contact Finish Thickness :

11.8μin 0.30μm

RoHS Status :

ROHS3 Compliant

Pbfree Code :

yes

Contact Gender :

FEMALE

Pitch :

0.079 2.00mm

Rated Current (Signal) :

3A

Reliability :

COMMERCIAL

Contact Finish :

Gold

Packaging :

Bulk

Body Length or Diameter :

0.754 inch

REACH SVHC :

No SVHC

Contact Material :

Brass, Copper

Series :

Datamate L-Tek

Fastening Type :

Locking Ramp

Number of Rows :

2

Reach Compliance Code :

not_compliant

Row Spacing :

0.079 (2.00mm)

Max Operating Temperature :

125°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Voltage - Rated :

360V

DIN Conformance :

No

Factory Lead Time :

13 Weeks

Wire Gauge (Max) :

28 AWG

Cable Termination :

Crimp

Total Number of Contacts :

16

Wire Type :

Discrete

IEC Conformance :

No
