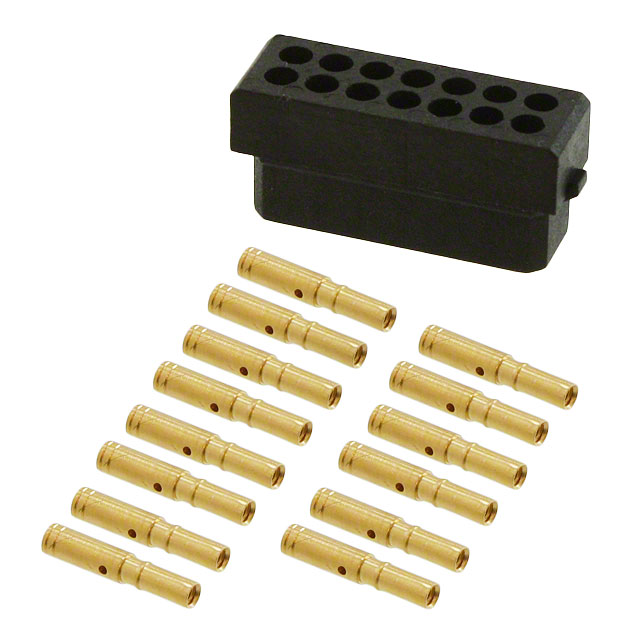

M80-7881405

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

DIN Conformance :

No

Body Length or Diameter :

0.675 inch

RoHS Status :

ROHS3 Compliant

Color :

Black

Durability :

500 Cycles

Published :

2006

Max Operating Temperature :

125°C

Rated Current (Signal) :

3A

Mixed Contacts :

No

Housing Material :

Polyamide

Packaging :

Bulk

Contact Material :

Brass, Copper

Min Operating Temperature :

-55°C

UL Flammability Code :

94V-0

IEC Conformance :

No

Contact Type :

Female Socket

Number of Rows :

2

Mount :

Free Hanging

Pbfree Code :

yes

Wire Gauge (Min) :

32 AWG

Contact Finish Thickness :

11.8μin 0.30μm

Filter Feature :

No

Wire Gauge (Max) :

28 AWG

JESD-609 Code :

e4

Factory Lead Time :

13 Weeks

Connector Type :

Receptacle

Contact Gender :

FEMALE

Total Number of Contacts :

14

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Option :

GENERAL PURPOSE

Wire Gauge :

28-32 AWG

REACH SVHC :

No SVHC

Mounting Type :

Free Hanging (In-Line)

Reference Standard :

UL

Contact Finish :

Gold

Cable Termination :

Crimp

Reliability :

COMMERCIAL

Number of Positions :

14

Fastening Type :

Locking Ramp

Wire Type :

Discrete

MIL Conformance :

No

Voltage - Rated :

360V

Current Rating :

3A

Row Spacing :

0.079 (2.00mm)

Insulation Resistance :

1GOhm

Pitch :

0.079 2.00mm

Series :

Datamate L-Tek
