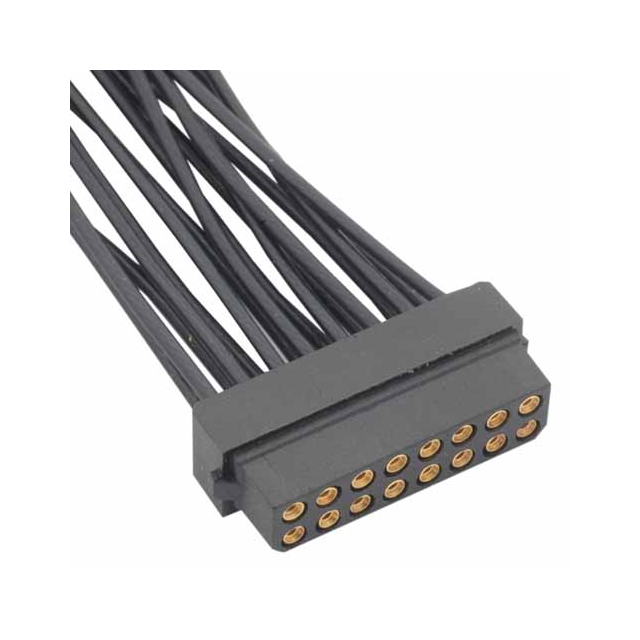

M80-7881401

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Option :

GENERAL PURPOSE

Contact Finish :

Gold

Reach Compliance Code :

not_compliant

Wire Gauge (Min) :

28 AWG

Color :

Black

Pitch :

0.079 2.00mm

Reference Standard :

UL

Connector Type :

Receptacle

Mixed Contacts :

No

Contact Finish Thickness :

11.8μin 0.30μm

Row Spacing :

0.079 (2.00mm)

Wire Gauge (Max) :

32 AWG

Packaging :

Bulk

Cable Termination :

Crimp

Factory Lead Time :

13 Weeks

Mounting Type :

Free Hanging (In-Line)

Contact Material :

NOT SPECIFIED

DIN Conformance :

No

Published :

2012

RoHS Status :

ROHS3 Compliant

Contact Design :

PREASSEM CONN

Series :

Datamate L-Tek

Operating Temperature (Min) :

-55°C

Number of Rows :

2

Insulation Material :

Glass Filled Polyamide

IEC Conformance :

No

MIL Conformance :

No

Rated Current (Signal) :

3A

Pbfree Code :

yes

Contact Type :

Female Socket

Mount :

Free Hanging

Number of Positions :

14

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Fastening Type :

Locking Ramp

Wire Gauge :

28-32 AWG

Body Length or Diameter :

0.675 inch

Reliability :

COMMERCIAL

Filter Feature :

No

Insulation Resistance :

100000000Ohm

Durability :

500 Cycles

UL Flammability Code :

94V-0

Wire Type :

Discrete

Total Number of Contacts :

14
