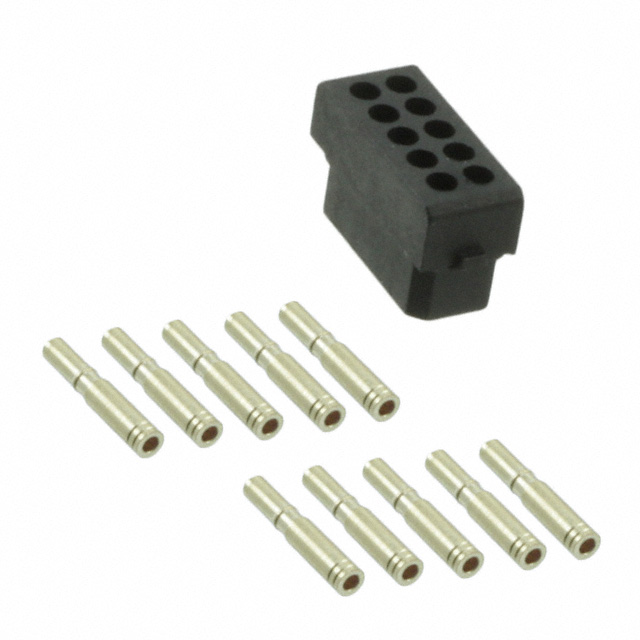

M80-7881005

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Number of Rows :

2

Fastening Type :

Locking Ramp

Housing Material :

Polyamide

Color :

Black

Pitch :

0.079 2.00mm

Factory Lead Time :

13 Weeks

Wire Gauge :

28-32 AWG

RoHS Status :

ROHS3 Compliant

UL Flammability Code :

94V-0

DIN Conformance :

No

Reference Standard :

UL

Packaging :

Bulk

Wire Gauge (Min) :

32 AWG

Published :

2012

MIL Conformance :

No

Current Rating :

3A

IEC Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Voltage Rating (AC) :

120V

Number of Positions :

10

Filter Feature :

No

Min Operating Temperature :

-55°C

Orientation :

Straight

Series :

Datamate L-Tek

Voltage - Rated :

360V

Durability :

500 Cycles

Total Number of Contacts :

10

Rated Current (Signal) :

3A

Depth :

8.15mm

Contact Finish Thickness :

11.8μin 0.30μm

Contact Finish :

Gold

JESD-609 Code :

e4

Mount :

Free Hanging

Mounting Type :

Free Hanging (In-Line)

Max Operating Temperature :

125°C

REACH SVHC :

No SVHC

Connector Type :

Receptacle

Contact Gender :

FEMALE

Contact Material :

Brass

Row Spacing :

0.079 (2.00mm)

Reliability :

COMMERCIAL

Length :

23.15mm

Wire Type :

Discrete

Insulation Resistance :

1GOhm

Cable Termination :

Crimp

Contact Resistance :

25mOhm

Mixed Contacts :

No

Contact Type :

Female Socket

Option :

GENERAL PURPOSE

Max Current Rating :

3A

Wire Gauge (Max) :

28 AWG

Pbfree Code :

yes
