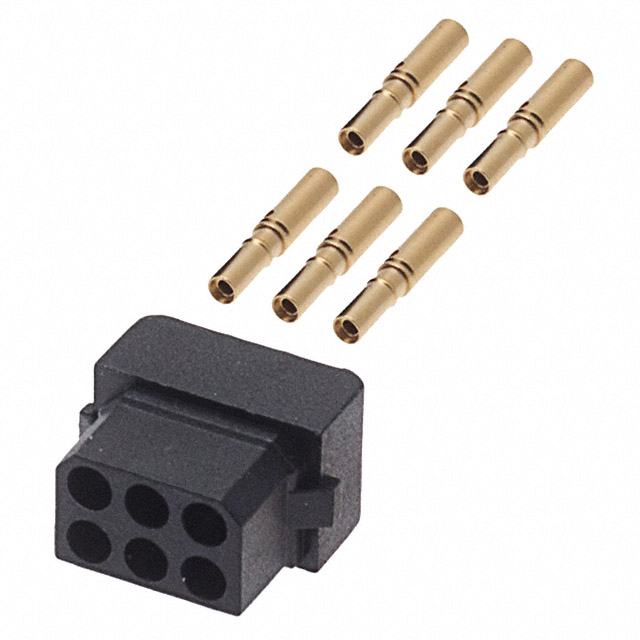

M80-7880605

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Color :

Black

MIL Conformance :

No

Reach Compliance Code :

not_compliant

UL Flammability Code :

94V-0

Contact Finish Thickness :

11.8μin 0.30μm

Total Number of Contacts :

6

ECCN Code :

EAR99

Filter Feature :

No

Current Rating :

3A

Row Spacing :

0.079 (2.00mm)

Housing Material :

Polyamide

Contact Finish :

Gold

Pitch :

0.079 2.00mm

Series :

Datamate L-Tek

Option :

GENERAL PURPOSE

Mounting Type :

Free Hanging (In-Line)

Min Operating Temperature :

-55°C

Contact Type :

Female Socket

Insulation Resistance :

1GOhm

Wire Type :

Discrete

RoHS Status :

ROHS3 Compliant

Mixed Contacts :

No

Voltage - Rated :

360V

Factory Lead Time :

13 Weeks

Published :

2012

Number of Positions :

6

Packaging :

Bulk

Wire Gauge (Min) :

28 AWG

Cable Termination :

Crimp

Durability :

500 Cycles

Connector Type :

Receptacle

IEC Conformance :

No

Wire Gauge :

28-32 AWG

Rated Current (Signal) :

3A

Max Operating Temperature :

125°C

Reliability :

COMMERCIAL

Contact Material :

Brass, Copper

Reference Standard :

UL

Contact Gender :

FEMALE

Wire Gauge (Max) :

32 AWG

Fastening Type :

Locking Ramp

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pbfree Code :

yes

REACH SVHC :

No SVHC

Number of Rows :

2

DIN Conformance :

No

Mount :

Free Hanging
