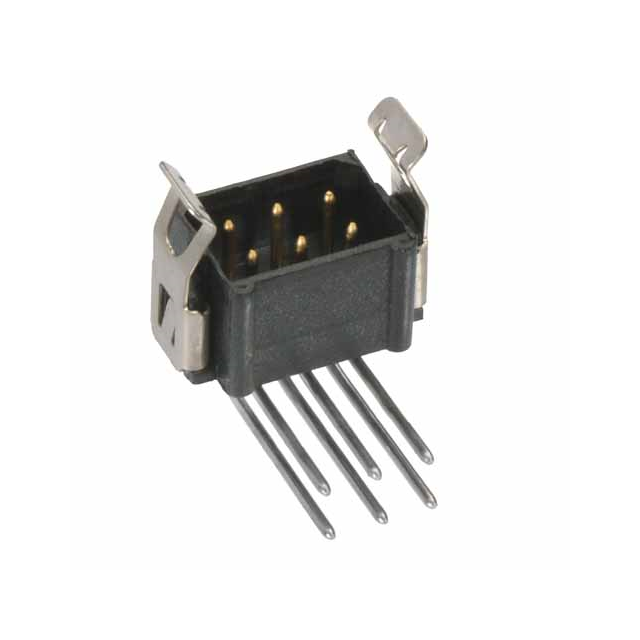

M80-7711422

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Mounting Style :

RIGHT ANGLE

Body Breadth :

0.235 inch

Operating Temperature (Min) :

-55°C

Length - Termination :

0.177 inch

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Resistance :

25mOhm

Contact Gender :

Male

Mounting Type :

BOARD

Durability :

500 Cycles

UL Flammability Code :

94V-0

Contact Material :

Phosphor Bronze

Body Length or Diameter :

0.713 inch

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

MIL Conformance :

No

Body Depth :

0.32 inch

IEC Conformance :

No

DIN Conformance :

No

Plating Thickness :

30μin

Termination Type :

Solder

Additional Feature :

LATCHED

Factory Lead Time :

15 Weeks

Insulation Resistance :

100000000Ohm

Operating Temperature (Max) :

125°C

Terminal Pitch :

2mm

Contact Style :

RND PIN-SKT

Reach Compliance Code :

Compliant

Reference Standard :

UL

Reliability :

COMMERCIAL

HTS Code :

8536.69.40.40

Contact Finish - Mating :

GOLD (30)

ECCN Code :

EAR99

Body/Shell Style :

Receptacle

Insulation Material :

Polyamide

JESD-609 Code :

e0

Mating Contact Row Spacing :

0.079 inch

Filter Feature :

No

Contact Pattern :

RECTANGULAR

Mounting Option 2 :

Latch

Mixed Contacts :

No

Pbfree Code :

No

Option :

GENERAL PURPOSE

Number Of PCB Rows :

2

Connector Type :

BOARD CONNECTOR

Insulator Color :

Black

Rated Current (Signal) :

3A

Number of Conductors :

ONE

Contact Finish Termination :

Tin/Lead (Sn/Pb)

RoHS Status :

Non-RoHS Compliant

Mounting Option 1 :

LOCKING

Polarization Key :

POLARIZED HOUSING

Number of Rows :

2

PCB Contact Row Spacing :

2.0066 mm

Total Number of Contacts :

14

Mating Contact Pitch :

0.079 inch

PCB Contact Pattern :

RECTANGULAR
