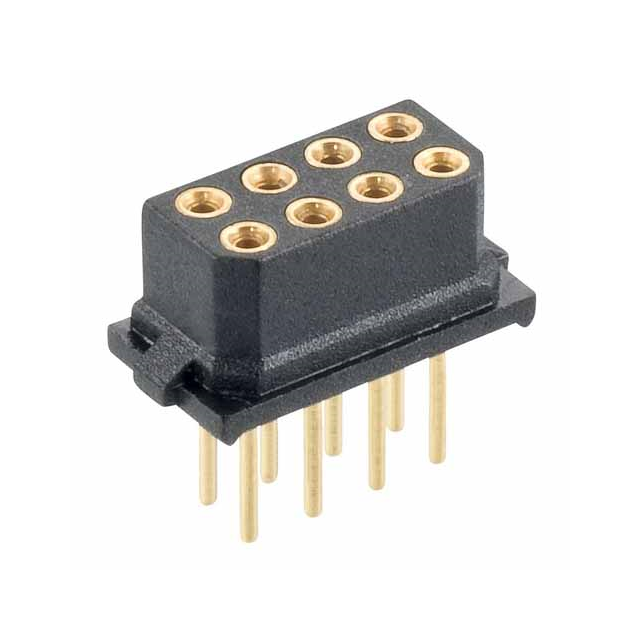

M80-7702042

Manufacturer :

Harwin

Product Category :

Headers, Receptacles, Female Sockets

Style :

Board to Board or Cable

Contact Length - Post :

0.177 4.50mm

Stack Height (Mating) :

7.23mm 7.85mm

Factory Lead Time :

16 Weeks

Operating Temperature :

-55°C~125°C

MIL Conformance :

No

Published :

2011

Filter Feature :

No

Mount :

Through Hole

Pbfree Code :

yes

Length - Termination :

0.177 inch

Additional Feature :

POLARISED

Connector Type :

Receptacle

Mixed Contacts :

No

Row Spacing - Mating :

0.079 (2.00mm)

Insulation Color :

Black

Pitch - Mating :

0.079 2.00mm

RoHS Status :

ROHS3 Compliant

Contact Finish - Post :

Tin

Number of Positions :

20

Reach Compliance Code :

not_compliant

Reliability :

COMMERCIAL

Mating Contact Pitch :

0.079 inch

Insulation Height :

0.202 5.14mm

Contact Material :

BERYLLIUM COPPER

Insulation Material :

Polyamide (PA46), Nylon 4/6

Packaging :

Tube

Contact Type :

Female Socket

Termination :

Solder

Number of Rows :

2

Voltage - Rated :

120V

Contact Finish Thickness - Post :

157.5μin 4.00μm

UL Flammability Code :

94V-0

Body Length or Diameter :

0.911 inch

Number of Positions Loaded :

All

Material Flammability Rating :

UL94 V-0

IEC Conformance :

No

DIN Conformance :

No

ECCN Code :

EAR99

Applications :

Automotive, General Purpose, Military

Mounting Type :

Through Hole

Number Of PCB Rows :

2

Polarization Key :

POLARIZED HOUSING

Contact Finish Thickness - Mating :

12.0μin 0.30μm

Series :

Datamate L-Tek

Number of Conductors :

ONE

PCB Contact Pattern :

RECTANGULAR

Fastening Type :

Locking Ramp

Contact Finish - Mating :

Gold

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Shape :

Circular

JESD-609 Code :

e3

HTS Code :

8536.69.40.40
