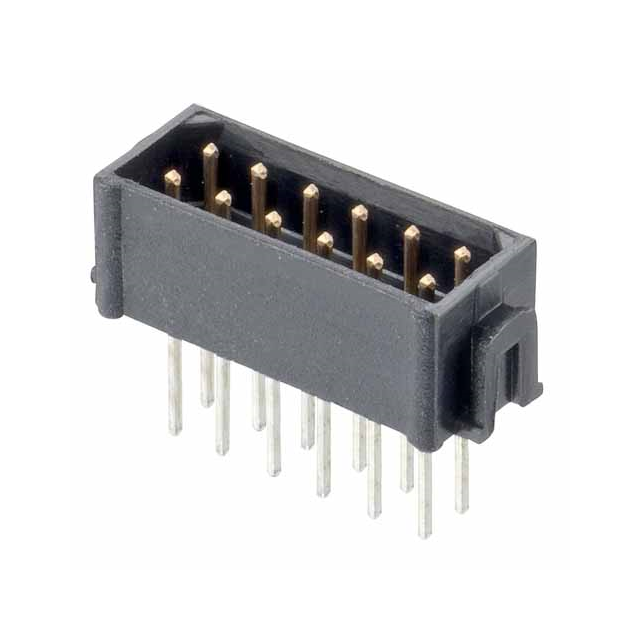

M80-7540845

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Number of Rows :

2 Row

Maximum Operating Temperature :

+ 125 C

Contact Finish Thickness - Post :

-

Termination :

Solder

Applications :

-

Termination Style :

Solder Pin

Contact Type :

-

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Operating Temperature :

-55°C ~ 125°C

Row Spacing - Mating :

0.079 (2.00mm)

Termination Post Length :

4.5 mm

Insulation Color :

Black

Insulation Resistance :

1 GOhms

Contact Length - Mating :

-

Contact Length - Post :

0.177 (4.50mm)

Overall Contact Length :

-

Mated Stacking Heights :

7.23mm, 7.85mm, 10.2mm, 13.51mm

Pitch :

2 mm

Fastening Type :

Latch Holder

Mounting Type :

Through Hole

Material Flammability Rating :

UL94 V-0

Base Product Number :

M80-754

Type :

SHROUDED

Housing Gender :

-

Flammability Rating :

UL 94 V-0

Contact Material :

Phosphor Bronze

Mounting Angle :

Straight

Contact Finish Thickness - Mating :

29.5µin (0.75µm)

Housing Material :

Polyamide (PA)

Style :

Board to Board or Cable

Product Status :

Active

Connector Type :

Header

Contact Gender :

Pin (Male)

Number of Positions :

8 Position

Insulation Height :

0.219 (5.56mm)

Tradename :

Datamate

Number of Positions Loaded :

All

RoHS :

Details

Contact Finish - Mating :

Gold

Contact Finish - Post :

-

Mounting Style :

Through Hole

Ingress Protection :

-

Series :

L-Tek

Product :

Headers

Row Spacing :

2 mm

Contact Shape :

Circular

Current Rating :

3 A

Housing Color :

Black

Current Rating (Amps) :

2.2A per Contact

Package :

Tube

Shrouding :

Shrouded - 4 Wall

Contact Plating :

Gold

Features :

-

Voltage Rating :

120 V

Pitch - Mating :

0.079 (2.00mm)

Minimum Operating Temperature :

- 55 C
