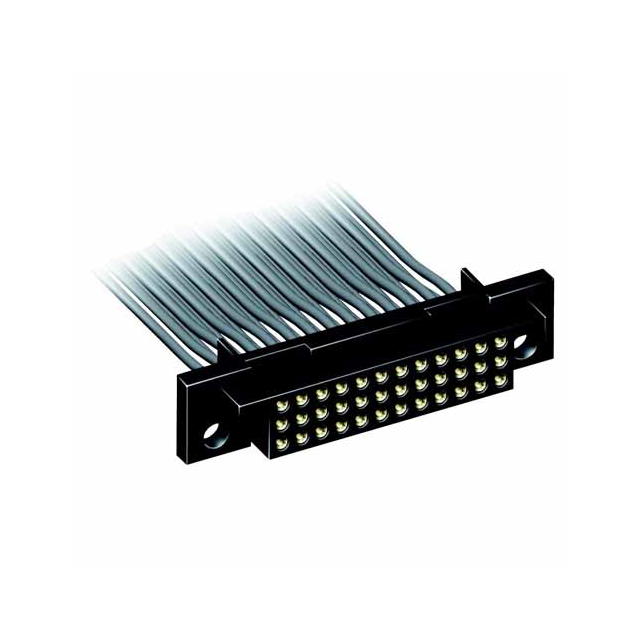

M80-7093605

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Contact Material :

BERYLLIUM COPPER

Mounting Type :

Panel Mount

Insulation Resistance :

100000000Ohm

Total Number of Contacts :

36

Insertion Force-Max :

2.78 N

Rated Current (Signal) :

3A

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

MIL Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions :

36

Durability :

500 Cycles

Factory Lead Time :

13 Weeks

ECCN Code :

EAR99

Wire Type :

Discrete

Body Length or Diameter :

1.461 inch

Pbfree Code :

yes

Gender :

Male

Row Spacing :

0.079 (2.00mm)

UL Flammability Code :

94V-0

DIN Conformance :

No

Contact Gender :

FEMALE

Operating Temperature (Min) :

-55°C

Wire Gauge :

22 AWG

Published :

2005

Filter Feature :

No

Mount :

Panel

Withdrawl Force-Min :

.1946 N

Contact Resistance :

25mOhm

Mixed Contacts :

No

Contact Type :

Female Socket

Operating Temperature (Max) :

125°C

Wire/Cable Gauge :

22 AWG

Option :

GENERAL PURPOSE

Contact Finish Thickness :

11.8μin 0.30μm

Contact Finish :

Gold

Pitch :

0.079 2.00mm

Reach Compliance Code :

not_compliant

Housing Material :

Polyamide

RoHS Status :

ROHS3 Compliant

Reliability :

COMMERCIAL

Connector Type :

Receptacle

Empty Shell :

No

Cable Termination :

Crimp

Series :

Datamate J-Tek

Packaging :

Tray

Additional Feature :

POLARIZED, SHROUDED

Reference Standard :

UL

JESD-609 Code :

e4

Plating Thickness :

12μin

Polarization Key :

POLARIZED HOUSING

IEC Conformance :

No

Current Rating :

10A

Number of Rows :

3
