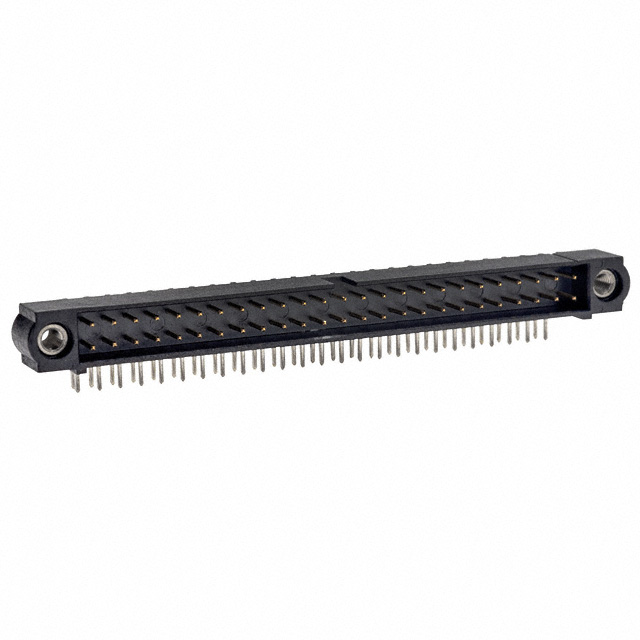

M80-5L14242MC

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Mount :

Through Hole

Insulation Color :

Black

MIL Conformance :

No

Contact Material :

Phosphor Bronze

Current Rating (Amps) :

2.2A

Contact Type :

Male Pin

Material Flammability Rating :

UL94 V-0

Mounting Type :

Through Hole, Right Angle

UL Flammability Code :

94V-0

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Option :

GENERAL PURPOSE

Number of Positions :

42

Row Spacing - Mating :

0.079 (2.00mm)

Shrouding :

Shrouded - 4 Wall

Length - Termination :

0.118 inch

Operating Temperature :

-55°C~125°C

HTS Code :

8536.69.40.40

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Reliability :

COMMERCIAL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

PCB Contact Pattern :

RECTANGULAR

Published :

2011

Pitch - Mating :

0.079 2.00mm

Contact Finish - Mating :

Gold

Voltage - Rated :

120V

Contact Shape :

Circular

ECCN Code :

EAR99

Body Depth :

0.314 inch

Insulation Resistance :

100000000Ohm

Connector Type :

Header

Number of Rows :

2

Fastening Type :

Push-Turn Lock

Pbfree Code :

yes

Contact Finish Thickness - Post :

118.1μin 3.00μm

Number Of PCB Rows :

2

Termination :

Solder

Durability :

500 Cycles

Mating Contact Pitch :

0.079 inch

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

9 Weeks

Packaging :

Tube

Feature :

Keying Slot, Mating Flange

Insulation Height :

0.218 5.55mm

Contact Length - Post :

0.118 3.00mm

Number of Pins :

21

Series :

Datamate J-Tek

Plating Thickness :

30μin

Filter Feature :

No

Style :

Board to Board or Cable

IEC Conformance :

No

Number of Positions Loaded :

All

DIN Conformance :

No

JESD-609 Code :

e3

Reference Standard :

UL

Number of Conductors :

ONE

Contact Finish - Post :

Tin

Mixed Contacts :

No
