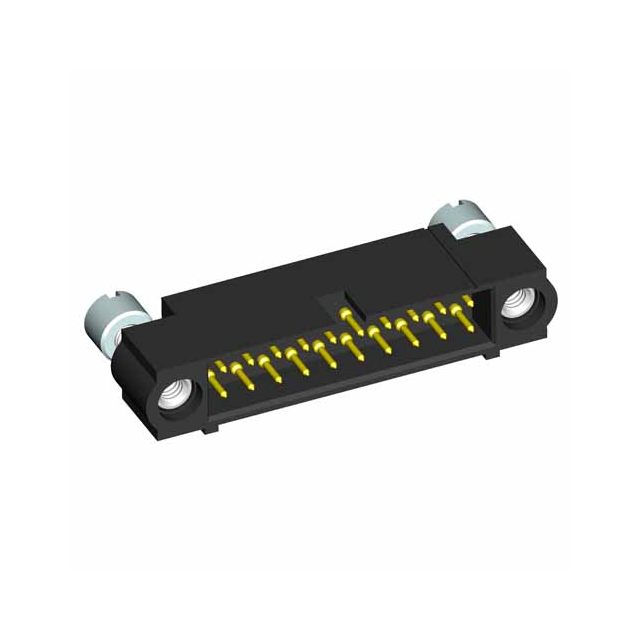

M80-5C12005M3
Or copy the link below:
- Mfr.Part #
- M80-5C12005M3
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- DATAMATE J-TEK DIL MALE SMALL BO
- Stock
- 15
- In Stock ：
- 15
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Free Hanging, Panel Mount
- Pitch :
- 0.079 2.00mm
- Packaging :
- Bulk
- Mounting Type :
- Panel Mount
- Durability :
- 500 Cycles
- Operating Temperature (Min) :
- -55°C
- Color :
- Black
- Number of Positions :
- 20
- Body/Shell Style :
- Receptacle
- Contact Finish Thickness :
- 10.0μin 0.25μm
- Wire Gauge :
- 24-28 AWG
- Pbfree Code :
- yes
- Connector Type :
- Header
- Body Depth :
- 0.309 inch
- Contact Gender :
- FEMALE
- Contact Type :
- Male Pin
- Insulation Resistance :
- 100000000Ohm
- Cable Termination :
- Crimp
- Number of Rows :
- 2
- Total Number of Contacts :
- 20
- Insulation Diameter-Min :
- 0.043 inch
- Body Length or Diameter :
- 1.181 inch
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Fastening Type :
- Screw Lock
- Reference Standard :
- UL
- Factory Lead Time :
- 9 Weeks
- Row Spacing :
- 0.079 (2.00mm)
- Feature :
- Jackscrews
- Contact Material :
- NOT SPECIFIED
- RoHS Status :
- ROHS3 Compliant
- Reliability :
- COMMERCIAL
- Wire Type :
- Discrete
- Insulation Material :
- GLASS FILLED POLYPHENYLENE SULPHIDE
- Series :
- Datamate J-Tek
- Contact Finish :
- Gold
- Datasheets
- M80-5C12005M3
