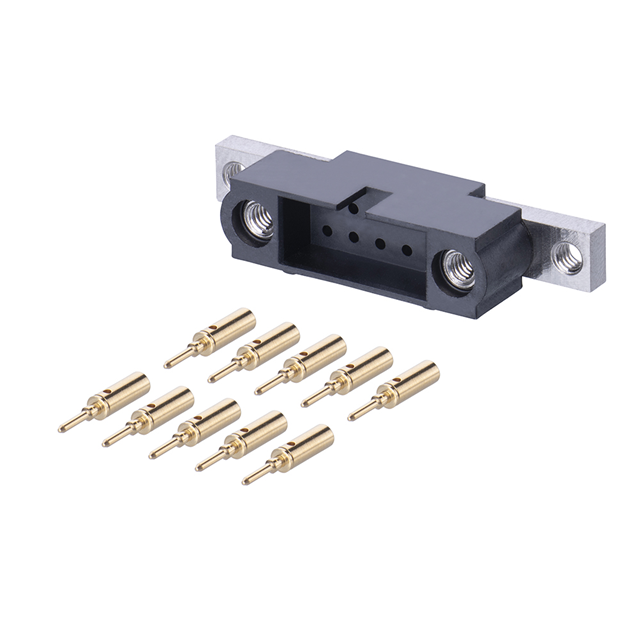

M80-5C11005MU
Or copy the link below:
- Mfr.Part #
- M80-5C11005MU
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG PNL MNT 24-28AWG 10POS
- Stock
- 58
- In Stock ：
- 58
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Free Hanging, Panel Mount
- Features :
- Mounting Flange
- Type :
- Datamate J-Tek
- Wire Gauge :
- 28 AG to 24 AWG
- Contact Plating :
- Gold
- Cable Termination :
- Crimp
- Contact Material :
- Brass
- Pitch :
- 2 mm
- Product Status :
- Active
- Minimum Operating Temperature :
- - 55 C
- Housing Color :
- Black
- Color :
- Black
- Housing Material :
- Polyphenylene Sulfide (PPS)
- Flammability Rating :
- UL94 V-0
- Mounting Type :
- Panel Mount
- Mounting Style :
- Panel Mount
- Contact Finish :
- Gold
- Tradename :
- Datamate
- Fastening Type :
- Threaded
- Gender :
- PLUG
- Termination Style :
- Crimp
- Contact Type :
- Male Pin
- Connector Type :
- PLUG
- Wire Type :
- Discrete
- Maximum Operating Temperature :
- + 125 C
- Number of Positions :
- 10 Position
- Mounting Angle :
- Straight
- Row Spacing :
- 0.079 (2.00mm)
- Series :
- J-Tek
- Base Product Number :
- M80-5C1
- Contact Finish Thickness :
- -
- Product :
- Connector Kits
- Package :
- Bag
- RoHS :
- Details
- Number of Rows :
- 2 Row
- Contact Gender :
- Pin (Male)
- Datasheets
- M80-5C11005MU
M80-5C11005MU Documents
2 Row Rows Plug Black 10 Position Positions Panel Mount Male Pin J-Tek Polyphenylene Sulfide (PPS)
M80-5C11005MU Overview
This product is packaged in a Plug box.Panel Mount indicates that the device is mounted.The product is a part of the J-Tek Series.
M80-5C11005MU Features
J-Tek series
M80-5C11005MU Applications
There are a lot of Harwin
M80-5C11005MU Rectangular Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
