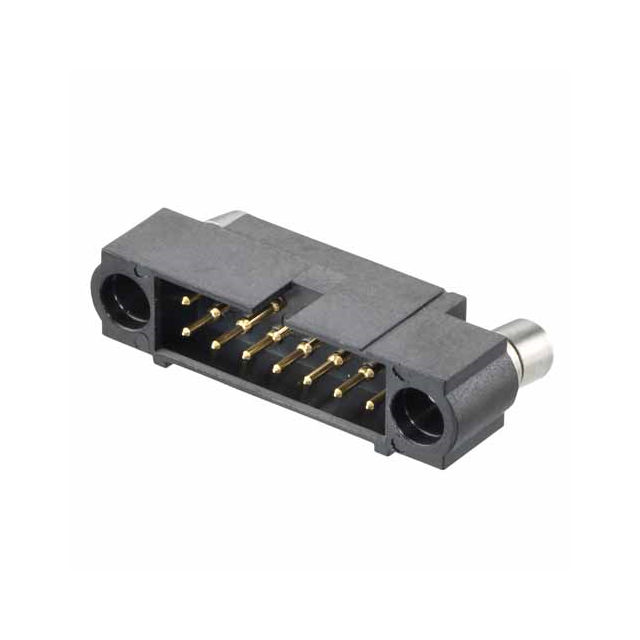

M80-5830805

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Packaging :

Bulk

Fastening Type :

Screw Lock

Series :

Datamate J-Tek

Contact Material :

COPPER ALLOY

Cable Termination :

Crimp

Mixed Contacts :

No

Number of Rows :

2

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Number of Positions :

8

Pbfree Code :

yes

Option :

GENERAL PURPOSE

Wire Gauge :

24-28 AWG

Contact Finish Thickness :

10.0μin 0.25μm

Operating Temperature (Min) :

-55°C

DIN Conformance :

No

Durability :

500 Cycles

Reference Standard :

UL

Filter Feature :

No

Mounting Type :

Free Hanging (In-Line)

JESD-609 Code :

e4

MIL Conformance :

No

Pitch :

0.079 2.00mm

UL Flammability Code :

94V-0

Factory Lead Time :

13 Weeks

Body Depth :

0.309 inch

Connector Type :

Header

Wire Type :

Discrete

Feature :

Jackscrews, Polarizing Key

Insulation Resistance :

100000000Ohm

Contact Type :

Male Pin

Mounting Option 1 :

LOCKING

Body/Shell Style :

Receptacle

Row Spacing :

0.079 (2.00mm)

IEC Conformance :

No

Color :

Black

Total Number of Contacts :

8

ECCN Code :

EAR99

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Body Length or Diameter :

0.709 inch

Contact Finish :

Gold

Insulation Diameter-Min :

0.043 inch

Reliability :

COMMERCIAL

RoHS Status :

ROHS3 Compliant
