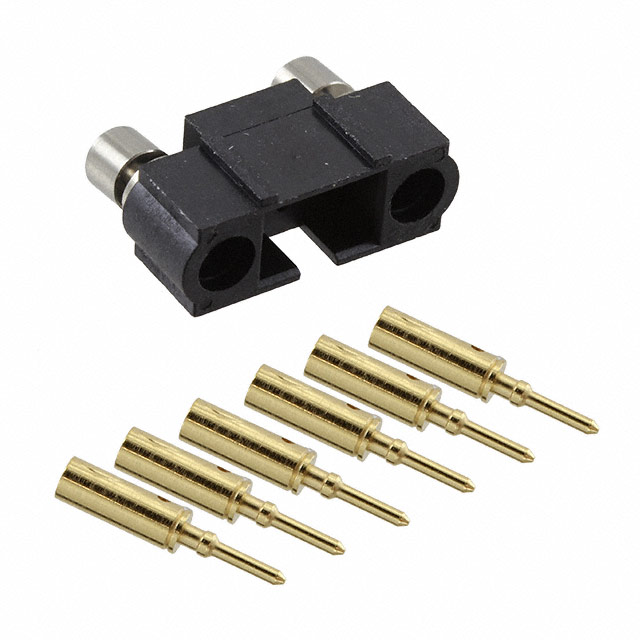

M80-5830605

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Total Number of Contacts :

6

Mounting Option 1 :

LOCKING

Factory Lead Time :

16 Weeks

Series :

Datamate J-Tek

DIN Conformance :

No

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Row Spacing :

0.079 (2.00mm)

Number of Positions :

6

Moisture Sensitivity Level (MSL) :

Not Applicable

Contact Material :

COPPER ALLOY

JESD-609 Code :

e4

Number of Rows :

2

Mounting Type :

Free Hanging (In-Line)

Additional Feature :

COMPATIBLE CONTACT: M80-1950005, PANEL MOUNTABLE

Pitch :

0.079 2.00mm

Contact Type :

Male Pin

Wire Type :

Discrete

Insulation Resistance :

100000000Ohm

Reach Compliance Code :

not_compliant

Contact Finish Thickness :

10.0μin 0.25μm

Body/Shell Style :

Receptacle

Cable Termination :

Crimp

Fastening Type :

Screw Lock

Filter Feature :

No

Body Depth :

0.309 inch

Contact Finish :

Gold

Feature :

Polarizing Key

Color :

Black

Insulation Diameter-Min :

0.043 inch

Pbfree Code :

yes

Packaging :

Bulk

Mounting Option 2 :

JACKSCREW

Connector Type :

Header

MIL Conformance :

No

Reference Standard :

UL

IEC Conformance :

No

RoHS Status :

ROHS3 Compliant

ECCN Code :

EAR99

Reliability :

COMMERCIAL

Wire Gauge :

24-28 AWG

UL Flammability Code :

94V-0

Durability :

500 Cycles

Mixed Contacts :

No

Option :

GENERAL PURPOSE

Operating Temperature (Min) :

-55°C
