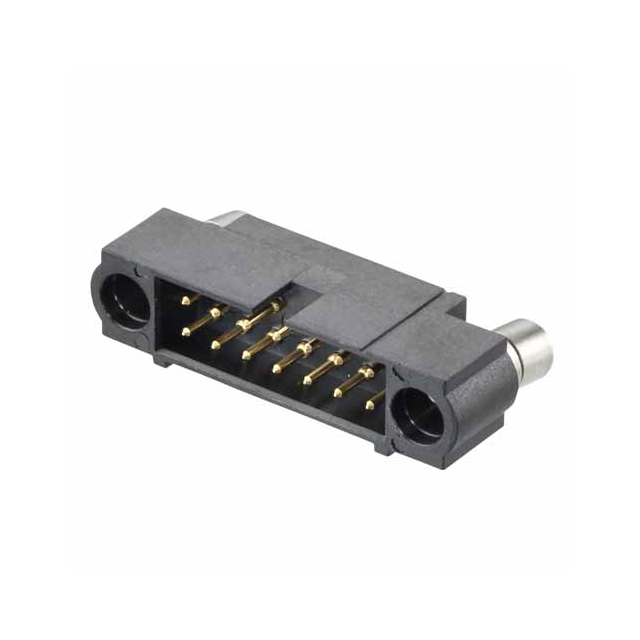

M80-5820405

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Row Spacing :

0.079 (2.00mm)

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Number of Rows :

2

Cable Termination :

Crimp

Pbfree Code :

yes

Reliability :

COMMERCIAL

Mounting Option 1 :

LOCKING

ECCN Code :

EAR99

Wire Gauge :

24-28 AWG

Filter Feature :

No

Packaging :

Bulk

Connector Type :

Header

Body Depth :

0.309 inch

Operating Temperature (Min) :

-55°C

Factory Lead Time :

16 Weeks

Rated Current (Signal) :

3A

Polarization Key :

POLARIZED HOUSING

Contact Material :

COPPER ALLOY

Color :

Black

Feature :

Jackscrews, Polarizing Key

Body/Shell Style :

Receptacle

Pitch :

0.079 2.00mm

RoHS Status :

ROHS3 Compliant

Total Number of Contacts :

4

Durability :

500 Cycles

Body Length or Diameter :

0.551 inch

DIN Conformance :

No

Fastening Type :

Screw Lock

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Type :

Male Pin

JESD-609 Code :

e4

IEC Conformance :

No

Series :

Datamate J-Tek

Mixed Contacts :

No

Wire Type :

Discrete

MIL Conformance :

No

Contact Design :

LOOSE

Contact Finish Thickness :

10.0μin 0.25μm

Contact Finish :

Gold

Option :

GENERAL PURPOSE

Reference Standard :

UL

Number of Positions :

4

Insulation Resistance :

100000000Ohm

Mounting Type :

Free Hanging (In-Line)
