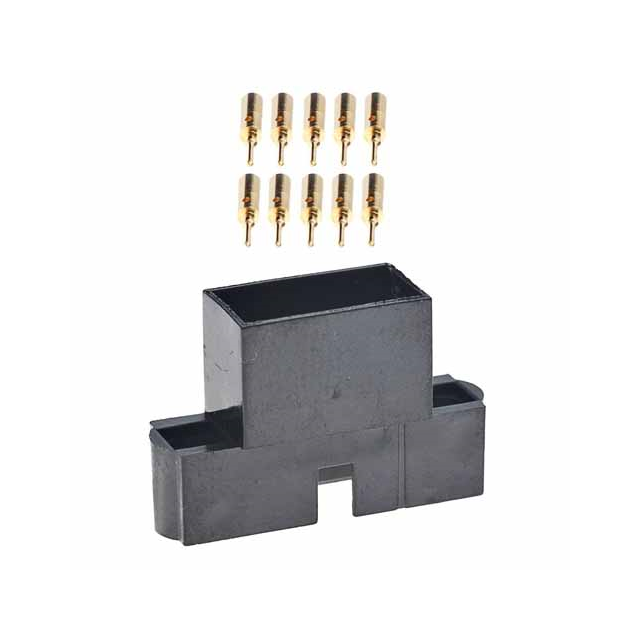

M80-5753405

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Wire Type :

Discrete

Published :

2013

Mount :

Free Hanging

MIL Conformance :

No

DIN Conformance :

No

Pitch :

0.079 2.00mm

Insulation Resistance :

100000000Ohm

Durability :

500 Cycles

Contact Finish :

Gold

RoHS Status :

ROHS3 Compliant

Contact Type :

Male Pin

Option :

GENERAL PURPOSE

Row Spacing :

0.079 (2.00mm)

Body/Shell Style :

JACK

Operating Temperature (Min) :

-55°C

ECCN Code :

EAR99

Factory Lead Time :

16 Weeks

IEC Conformance :

No

JESD-609 Code :

e4

Packaging :

Bulk

Reliability :

COMMERCIAL

Wire Gauge :

22 AWG

UL Flammability Code :

94V-0

Contact Finish Thickness :

10.0μin 0.25μm

Wire/Cable Gauge :

22 AWG

Number of Positions :

34

Reference Standard :

UL

Cable Termination :

Crimp

Body Depth :

0.506 inch

Contact Gender :

Male

Number of Rows :

2

Polarization Key :

POLARIZED HOUSING

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Total Number of Contacts :

34

Series :

Datamate J-Tek

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Filter Feature :

No

Reach Compliance Code :

not_compliant

Connector Type :

Header

Additional Feature :

COMPATIBLE CONTACTS: M80-1940005; M80-1950005

Mixed Contacts :

No

Pbfree Code :

yes

Mounting Type :

Free Hanging (In-Line)

Contact Material :

Brass

HTS Code :

8536.69.40.40

Color :

Black
