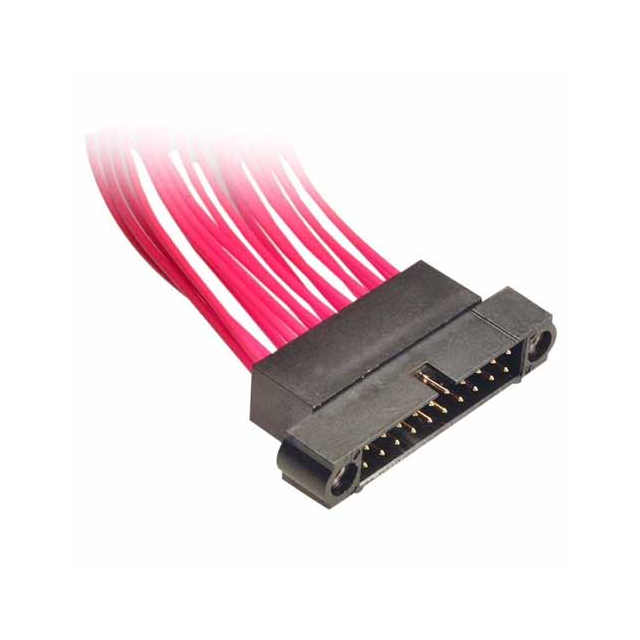

M80-5662005

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Contact Type :

Male Pin

Published :

2009

IEC Conformance :

No

JESD-609 Code :

e4

Number of Rows :

2

ECCN Code :

EAR99

Body Length or Diameter :

1.181 inch

Feature :

Jackscrews

Current Rating :

3A

Orientation :

Straight

Reach Compliance Code :

not_compliant

Mount :

Free Hanging

Wire Gauge :

24-28 AWG

Pbfree Code :

yes

Operating Temperature (Min) :

-55°C

HTS Code :

8536.69.40.40

Number of Positions :

20

Durability :

500 Cycles

Mixed Contacts :

No

Total Number of Contacts :

20

Filter Feature :

No

Reference Standard :

UL

Reliability :

COMMERCIAL

DIN Conformance :

No

Contact Finish :

Gold

Voltage - Rated :

120V

Mounting Type :

Free Hanging (In-Line)

Contact Material :

Brass

Pitch :

0.079 2.00mm

UL Flammability Code :

94V-0

MIL Conformance :

No

Packaging :

Bulk

Contact Gender :

Male

Wire Gauge (Max) :

28 AWG

Wire Gauge (Min) :

24 AWG

Option :

GENERAL PURPOSE

Body Depth :

0.506 inch

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Polarization Key :

POLARIZED HOUSING

Cable Termination :

Crimp

Factory Lead Time :

13 Weeks

Wire Type :

Discrete

RoHS Status :

ROHS3 Compliant

Additional Feature :

COMPATIBLE CONTACTS: M80-1940005; M80-1950005

Insulation Resistance :

100000000Ohm

Color :

Black

Connector Type :

Header

Row Spacing :

0.079 (2.00mm)

Series :

Datamate J-Tek

Contact Finish Thickness :

10.0μin 0.25μm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
