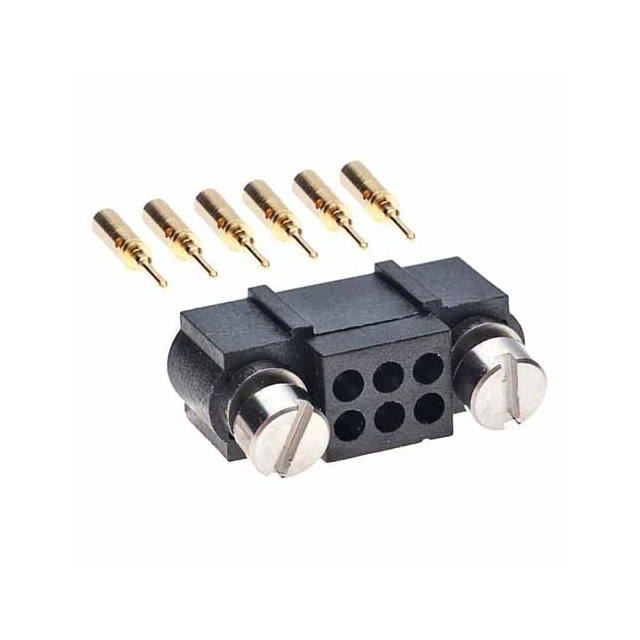

M80-5632605

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Contact Gender :

Male

Mixed Contacts :

No

Additional Feature :

COMPATIBLE CONTACT: M80-1950005, PANEL MOUNTABLE

Contact Finish Thickness :

10.0μin 0.25μm

Option :

GENERAL PURPOSE

DIN Conformance :

No

Contact Finish :

Gold

Feature :

Jackscrews

Insulation Resistance :

100000000Ohm

Number of Positions :

26

HTS Code :

8536.69.40.40

Number of Rows :

2

Contact Material :

COPPER ALLOY

Row Spacing :

0.079 (2.00mm)

ECCN Code :

EAR99

Color :

Black

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Pitch :

0.079 2.00mm

Durability :

500 Cycles

Wire Gauge :

24-28 AWG

IEC Conformance :

No

Wire Gauge (Max) :

28 AWG

Filter Feature :

No

Wire Gauge (Min) :

24 AWG

Wire Type :

Discrete

RoHS Status :

ROHS3 Compliant

Reliability :

COMMERCIAL

Body Length or Diameter :

1.417 inch

MIL Conformance :

No

Polarization Key :

POLARIZED HOUSING

Rated Current (Signal) :

3A

Packaging :

Bulk

Total Number of Contacts :

26

Pbfree Code :

yes

Operating Temperature (Min) :

-55°C

Cable Termination :

Crimp

Published :

2011

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mount :

Free Hanging

Connector Type :

Header

UL Flammability Code :

94V-0

Series :

Datamate J-Tek

Contact Type :

Male Pin

JESD-609 Code :

e4

Reference Standard :

UL

Factory Lead Time :

13 Weeks

Mounting Type :

Free Hanging (In-Line)

Body Depth :

0.309 inch
