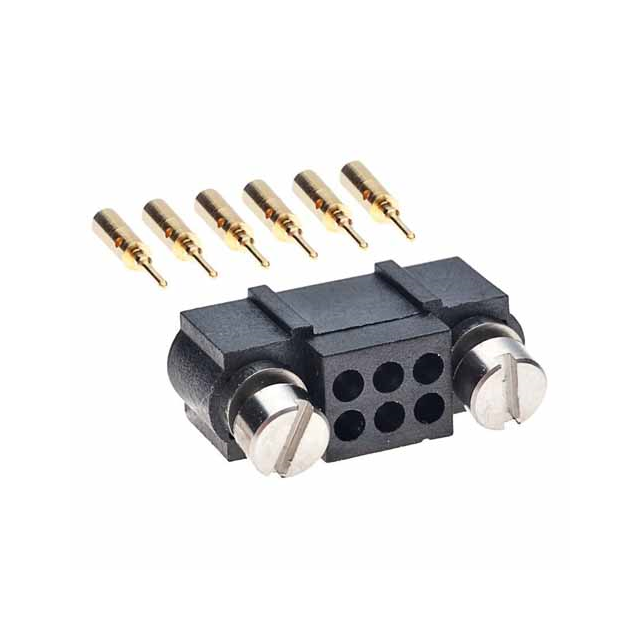

M80-5621005

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Contact Material :

COPPER ALLOY

Contact Finish :

Gold

Cable Termination :

Crimp

Reference Standard :

UL

Durability :

500 Cycles

Contact Gender :

Male

Body Length or Diameter :

0.787 inch

Published :

2013

Series :

Datamate J-Tek

Option :

GENERAL PURPOSE

Mixed Contacts :

No

Wire Type :

Discrete

JESD-609 Code :

e4

HTS Code :

8536.69.40.40

Color :

Black

MIL Conformance :

No

Wire/Cable Gauge :

22 AWG

Feature :

Jackscrews

IEC Conformance :

No

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

13 Weeks

Contact Type :

Male Pin

Operating Temperature (Min) :

-55°C

Wire Gauge :

22 AWG

Rated Current (Signal) :

3A

Mount :

Free Hanging

Number of Positions :

10

Connector Type :

Header

Mounting Type :

Free Hanging (In-Line)

Reliability :

COMMERCIAL

Number of Rows :

2

Row Spacing :

0.079 (2.00mm)

Filter Feature :

No

Reach Compliance Code :

not_compliant

Total Number of Contacts :

10

DIN Conformance :

No

Body Depth :

0.309 inch

Contact Finish Thickness :

10.0μin 0.25μm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Additional Feature :

COMPATIBLE CONTACT: M80-1940005, PANEL MOUNTABLE

Pitch :

0.079 2.00mm

ECCN Code :

EAR99

UL Flammability Code :

94V-0

Packaging :

Bulk

Polarization Key :

POLARIZED HOUSING

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Pbfree Code :

yes
