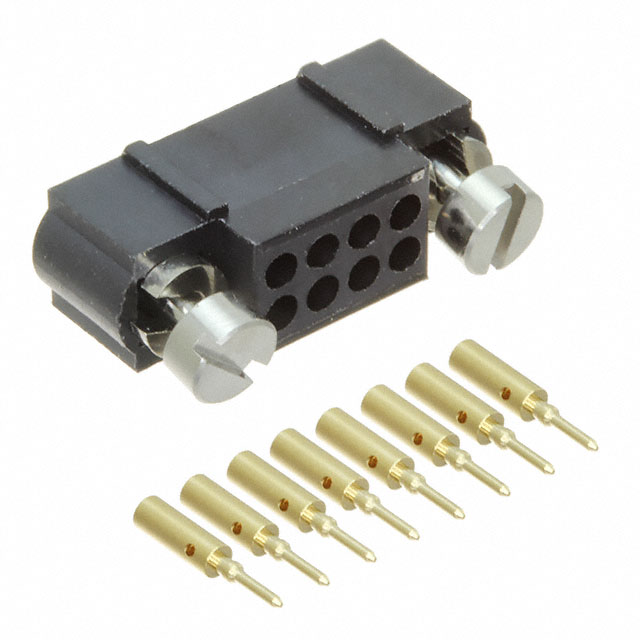

M80-5620805

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Contact Type :

Male Pin

Packaging :

Bulk

Reliability :

COMMERCIAL

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Row Spacing :

0.079 (2.00mm)

Number of Positions :

8

UL Flammability Code :

94V-0

Series :

Datamate J-Tek

Factory Lead Time :

13 Weeks

Published :

2015

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Option 1 :

LOCKING

Body Length or Diameter :

0.709 inch

Contact Design :

LOOSE

Cable Termination :

Crimp

Color :

Black

Pbfree Code :

yes

Filter Feature :

No

Durability :

500 Cycles

Wire Gauge :

22 AWG

Mixed Contacts :

No

Number of Rows :

2

Option :

GENERAL PURPOSE

Wire Type :

Discrete

Total Number of Contacts :

8

Polarization Key :

POLARIZED HOUSING

Connector Type :

Header

Operating Temperature (Min) :

-55°C

RoHS Status :

ROHS3 Compliant

DIN Conformance :

No

Insulation Resistance :

100000000Ohm

MIL Conformance :

No

JESD-609 Code :

e4

Pitch :

0.079 2.00mm

Contact Finish Thickness :

10.0μin 0.25μm

Contact Material :

COPPER ALLOY

Feature :

Jackscrews

Body Depth :

0.309 inch

Mounting Type :

Free Hanging (In-Line)

Reference Standard :

UL

IEC Conformance :

No

Rated Current (Signal) :

3A

Contact Finish :

Gold
