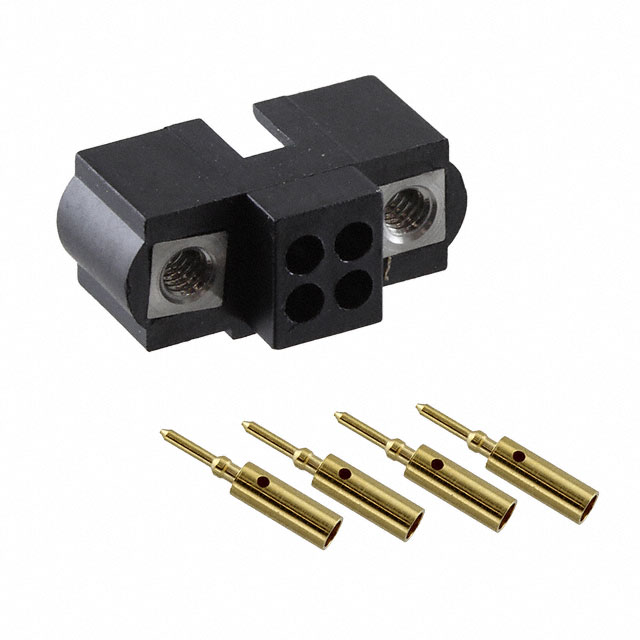

M80-5610405

Manufacturer :

Harwin

Product Category :

Free Hanging, Panel Mount

Option :

GENERAL PURPOSE

Contact Finish :

Gold

Reliability :

COMMERCIAL

Wire Type :

Discrete

Contact Type :

Male Pin

Body Depth :

0.309 inch

Mounting Type :

Free Hanging (In-Line)

Connector Type :

Header

Feature :

Jackscrews

Contact Material :

Brass

Insulation Material :

GLASS FILLED POLYPHENYLENE SULPHIDE

Reference Standard :

UL

ECCN Code :

EAR99

Pitch :

0.079 2.00mm

Additional Feature :

RoHS Compliant

Contact Finish Thickness :

10.0μin 0.25μm

Cable Termination :

Crimp

Body Length or Diameter :

0.551 inch

Series :

Datamate J-Tek

Total Number of Contacts :

4

MIL Conformance :

No

Packaging :

Bulk

Number of Rows :

2

Reach Compliance Code :

not_compliant

Wire Gauge :

24-28 AWG

RoHS Status :

ROHS3 Compliant

Mixed Contacts :

No

Row Spacing :

0.079 (2.00mm)

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

Not Applicable

DIN Conformance :

No

Body/Shell Style :

Receptacle

Operating Temperature (Min) :

-55°C

Filter Feature :

No

Insulation Resistance :

100000000Ohm

IEC Conformance :

No

Factory Lead Time :

10 Weeks

Color :

Black

Durability :

500 Cycles

JESD-609 Code :

e4

Number of Positions :

4
