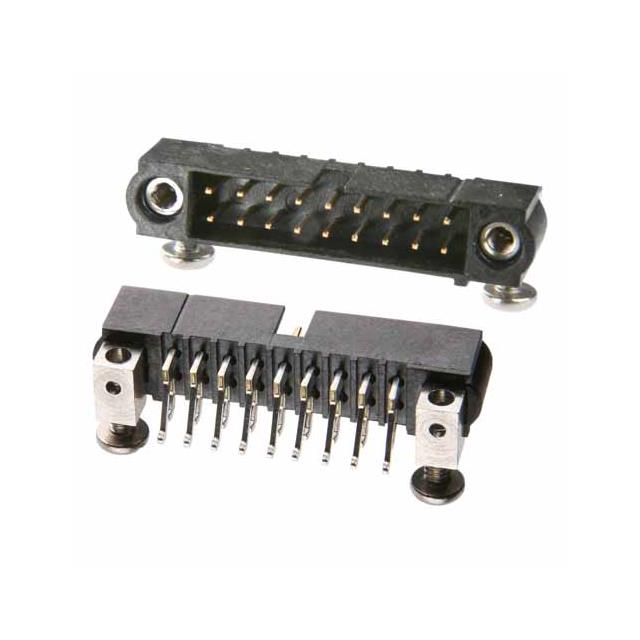

M80-5431622

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Contact Style :

RND PIN-SKT

Pitch :

2 mm

Durability :

500 Cycles

Polarization Key :

POLARIZED HOUSING

Contact Material :

Brass

Body Depth :

0.398 inch

Filter Feature :

No

Minimum Operating Temperature :

- 55 C

Current Rating :

3 A

Contact Finish Thickness - Mating :

29.5µin (0.75µm)

Contact Gender :

Pin (Male)

Reliability :

COMMERCIAL

Mated Stacking Heights :

-

Number Of PCB Rows :

2

Contact Finish - Mating :

Gold

Ingress Protection :

-

Contact Finish Termination :

Tin/Lead (Sn/Pb)

Number of Positions Loaded :

All

Housing Material :

Polyphenylene Sulfide (PPS)

Mounting Angle :

Straight

DIN Conformance :

No

Tradename :

Datamate

ECCN Code :

EAR99

Mating Contact Pitch :

0.079 inch

Current Rating (Amps) :

2.2A

HTS Code :

8536.69.40.40

Housing Color :

Black

Body Breadth :

0.238 inch

Product :

Headers

Package :

Tube

Contact Pattern :

RECTANGULAR

Total Number of Contacts :

16

Option :

GENERAL PURPOSE

Contact Finish Thickness - Post :

12.0µin (0.30µm)

Connector Type :

Header

Flammability Rating :

UL 94V-0

Mounting Type :

Surface Mount, Right Angle

Contact Length - Post :

-

Mixed Contacts :

No

Plating Thickness :

30u inch

Mating Contact Row Spacing :

0.079 inch

Contact Finish - Post :

Tin-Lead

MIL Conformance :

No

Mounting Option 2 :

JACKSCREW

Contact Resistance :

25 mΩ

IEC Conformance :

No

Type :

SHROUDED

JESD-609 Code :

e0

Termination :

Solder

Number of Positions :

16 Position

Insulation Color :

Black

PCB Contact Row Spacing :

2.4892 mm

Number of Rows :

2 Row

Fastening Type :

Threaded

Material Flammability Rating :

UL94 V-0

Maximum Operating Temperature :

+ 125 C

Features :

Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware

Termination Type :

Surface Mount

UL Flammability Code :

94V-0

Product Status :

Active

Row Spacing - Mating :

0.079 (2.00mm)

Series :

J-Tek

Reference Standard :

UL

Pbfree Code :

No

Insulation Resistance :

100000000 Ω

Mounting Style :

SMD/SMT

Overall Contact Length :

-

Terminal Pitch :

2 mm

PCB Contact Pattern :

RECTANGULAR

Mounting Option 1 :

LOCKING

Voltage Rating :

800VAC/DC

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Operating Temperature :

-55°C ~ 125°C

Contact Plating :

Gold

Body/Shell Style :

Receptacle

Insulator Color :

Black

Shrouding :

Shrouded - 4 Wall

Rated Current (Signal) :

3 A

Contact Length - Mating :

-

Row Spacing :

2 mm

Reach Compliance Code :

Compliant

Termination Style :

Solder

Style :

Board to Board or Cable

Contact Shape :

Circular

Applications :

-

Pitch - Mating :

0.079 (2.00mm)

Contact Type :

Male Pin

RoHS :

N

Insertion Force-Max :

2.78 N

Insulation Height :

0.218 (5.55mm)
