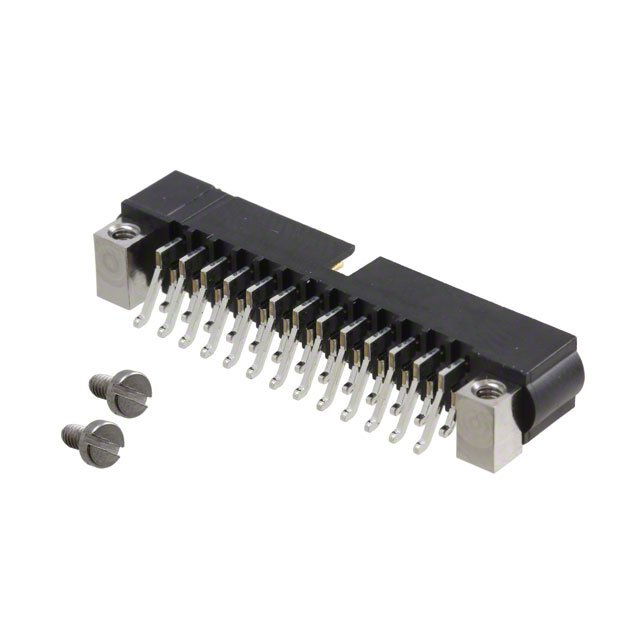

M80-5422642

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Insulation Height :

0.218 5.55mm

Contact Shape :

Circular

Polarization Key :

POLARIZED HOUSING

Filter Feature :

No

Mixed Contacts :

No

Max Current Rating :

3A

Pitch - Mating :

0.079 2.00mm

Operating Temperature :

-55°C~125°C

Contact Resistance :

25mOhm

Housing Color :

Black

Packaging :

Tube

Durability :

500 Cycles

Reference Standard :

UL

Contact Material :

COPPER ALLOY

ECCN Code :

EAR99

Material Flammability Rating :

UL94 V-0

Current Rating (Amps) :

2.2A

Number Of PCB Rows :

2

Feature :

Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware

Number of Positions :

26

Contact Finish - Mating :

Gold

Option :

GENERAL PURPOSE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

DIN Conformance :

No

Length :

36mm

Total Number of Contacts :

26

Housing Material :

Polyphenylene

PCB Contact Pattern :

RECTANGULAR

IEC Conformance :

No

Number of Conductors :

ONE

Factory Lead Time :

13 Weeks

Number of Positions Loaded :

All

Reliability :

COMMERCIAL

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Orientation :

RIGHT ANGLE

Current Rating :

3A

Radiation Hardening :

No

Row Spacing - Mating :

0.079 (2.00mm)

Connector Type :

Header

Series :

Datamate J-Tek

HTS Code :

8536.69.40.40

Mounting Type :

Surface Mount, Right Angle

Pbfree Code :

yes

Shrouding :

Shrouded - 4 Wall

REACH SVHC :

No SVHC

Published :

2006

Mount :

Surface Mount

RoHS Status :

ROHS3 Compliant

Mating Contact Pitch :

0.079 inch

UL Flammability Code :

94V-0

Contact Finish Thickness - Post :

118.1μin 3.00μm

Insulation Resistance :

100000000Ohm

Style :

Board to Board or Cable

Termination :

Solder

Number of Rows :

2

MIL Conformance :

No

Contact Gender :

Male

Contact Type :

Male Pin

Max Voltage Rating (AC) :

120V

Plating Thickness :

30μin

Voltage - Rated :

800V

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Depth :

10.1mm

Additional Feature :

RoHS Compliant

JESD-609 Code :

e3

Contact Finish - Post :

Tin

Fastening Type :

Threaded
