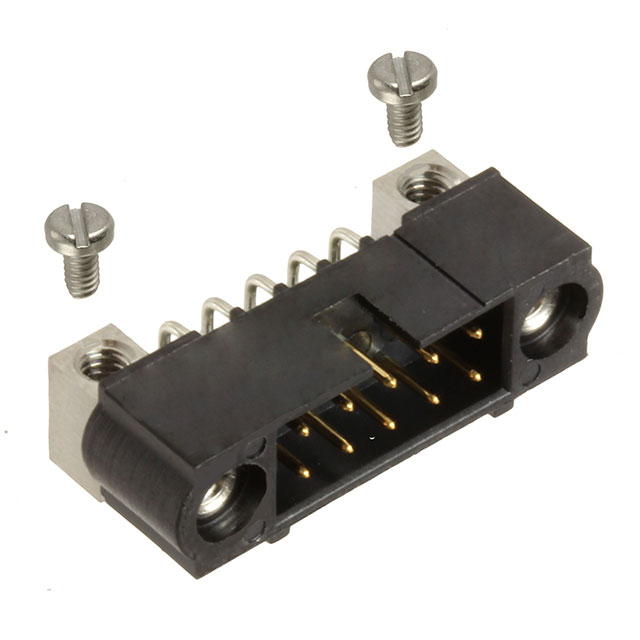

M80-5401042

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Filter Feature :

No

Orientation :

RIGHT ANGLE

Series :

Datamate J-Tek

RoHS Status :

ROHS3 Compliant

Durability :

500 Cycles

Lead Pitch :

2mm

MIL Conformance :

No

Reliability :

COMMERCIAL

Termination :

Solder

Mixed Contacts :

No

Fastening Type :

Threaded

Pbfree Code :

yes

Housing Color :

Black

Contact Finish Thickness - Post :

118.1μin 3.00μm

Option :

GENERAL PURPOSE

ECCN Code :

EAR99

Max Voltage Rating (AC) :

120V

Insulation Height :

0.218 5.55mm

Number Of PCB Rows :

2

Number of Positions :

10

Feature :

Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware

Mount :

Through Hole

Material Flammability Rating :

UL94 V-0

Voltage - Rated DC :

120V

Current Rating (Amps) :

2.2A

Contact Resistance :

25mOhm

Operating Temperature :

-55°C~125°C

JESD-609 Code :

e3

Mating Contact Pitch :

0.079 inch

Number of Conductors :

ONE

Width :

5.6mm

Height :

6.15mm

Contact Length - Post :

0.118 3.00mm

UL Flammability Code :

94V-0

Voltage - Rated :

800V

DIN Conformance :

No

Insulation Material :

Polyphenylene Sulfide (PPS), Glass Filled

Style :

Board to Board or Cable

Radiation Hardening :

No

Insulation Resistance :

100MOhm

PCB Contact Pattern :

RECTANGULAR

Weight :

2.018004g

Housing Material :

Polyphenylene

IEC Conformance :

No

Shrouding :

Shrouded - 4 Wall

Published :

2004

Number of Positions Loaded :

All

Factory Lead Time :

9 Weeks

Mounting Type :

Through Hole, Right Angle

Contact Finish - Mating :

Gold

Contact Gender :

Male

Reference Standard :

UL

Row Spacing - Mating :

0.079 (2.00mm)

Polarization Key :

POLARIZED HOUSING

Pitch - Mating :

0.079 2.00mm

Contact Shape :

Circular

REACH SVHC :

No SVHC

Max Current Rating :

3A

Connector Type :

Header

Contact Finish Thickness - Mating :

29.5μin 0.75μm

Contact Material :

Phosphor Bronze

HTS Code :

8536.69.40.40

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Plating Thickness :

30μin

Current Rating :

3A

Packaging :

Tube

Length :

20mm

Contact Finish - Post :

Tin

Flammability Rating :

UL94 V-0

Number of Rows :

2

Contact Type :

Male Pin
