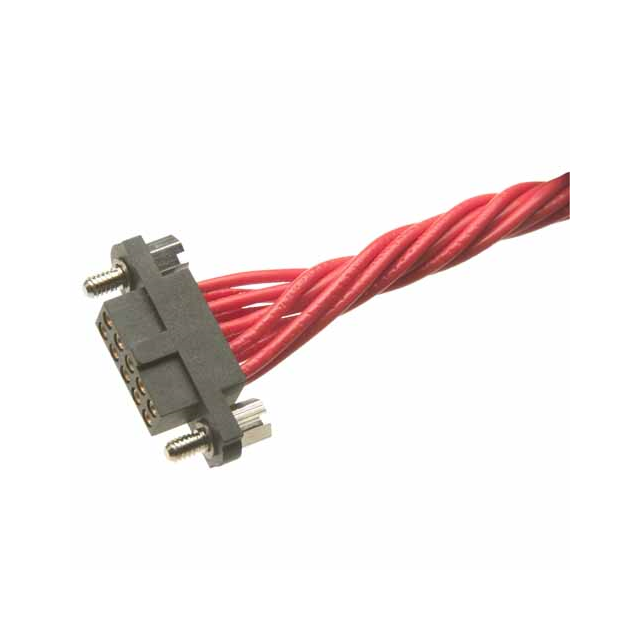

M80-4E11805F1
Or copy the link below:
- Mfr.Part #
- M80-4E11805F1
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 18POS CRIMP 28-32AWG
- Stock
- 36,143
- In Stock ：
- 36,143
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Free Hanging, Panel Mount
- Mount :
- Free Hanging
- Contact Finish Thickness :
- 11.8μin 0.30μm
- Number of Rows :
- 2
- Packaging :
- Bulk
- Wire Gauge :
- 28-32 AWG
- IEC Conformance :
- No
- Wire Type :
- Discrete
- Feature :
- Jackscrews
- UL Flammability Code :
- 94V-0
- DIN Conformance :
- No
- Factory Lead Time :
- 9 Weeks
- Series :
- Datamate J-Tek
- Published :
- 2012
- Row Spacing :
- 0.079 (2.00mm)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 18
- Contact Finish :
- Gold
- Cable Termination :
- Crimp
- MIL Conformance :
- No
- Wire Gauge (Max) :
- 32 AWG
- Connector Type :
- Receptacle
- Contact Material :
- NOT SPECIFIED
- Pitch :
- 0.079 2.00mm
- Wire Gauge (Min) :
- 28 AWG
- Pbfree Code :
- yes
- Filter Feature :
- No
- Mixed Contacts :
- No
- Total Number of Contacts :
- 18
- RoHS Status :
- ROHS3 Compliant
- Option :
- GENERAL PURPOSE
- Color :
- Black
- Contact Type :
- Female Socket
- Mounting Type :
- Free Hanging (In-Line)
- Datasheets
- M80-4E11805F1
